Telecentric CO2 Laser Scan Lens TSL-9.4-80-150-D25, 9.4μm 80×80mm Galvo Marking F-theta Field Lens

Telecentric Scan Lens for CO₂ Laser

Telecentric scanning lenses are special configurations in which the arrangement of optics is designed to focus down the beam so that it is always perpendicular to the flat field. This is accomplished by ensuring that the system ‘stop’ is located at the front focal point of the lens system. The ‘stop’ is located at the position where the beam is deflected from the axis. In a single-axis scanning system, this location is at the scanning mirror. For two-axis scanning, the stop is midway between the mirrors. Adaptors for major scan head providers are available upon request.

  • Wavelength: 9.4μm
  • EFL: 150mm
  • FFL: 225.1mm
  • Scan Length: 115mm
  • Scan Field: 80*80mm
  • Input Beam: 25mm
  • M1-M2: 30.9mm
  • Total Length: 113mm
  • WD: 144.4mm
  • Diagonal scan angle: ±21.7deg
  • Transmission: > 97%@9.4μm

Product Detail

Product Tags

  • -Telecentric design ensures vertical laser beam & uniform spot over full 80×80mm field, no edge blurring
  • -Custom 9.4μm gold coating for CO₂ laser, high transmittance & less energy loss for higher efficiency
  • --Reflective off-axis structure avoids thermal drift of glass lenses, stable for long high-power working
  • -Fixed 150mm EFL, steady beam collimation & consistent focusing performance
  • -Standard M85×1 mounting thread, compatible with most dual-axis CO₂ galvanometer scanners
  • -Precision all-metal black lens housing with positioning holes, easy to mount & align optics quickly
  • -Ultra-low field curvature & distortion, uniform clear marking, engraving & cutting on all materials
  • -Custom scan head adapters available to match all mainstream scanner brands

Application Scenarios

CO₂ laser marking for plastic, rubber, PCB, electronic parts and packaging materials

Laser engraving & cutting for leather, wood, acrylic, foam and other non-metallic materials

Industrial batch date coding, QR code printing and anti-counterfeit fine marking equipment

9.4μm long-wave infrared beam collimation and beam shaping optical systems

Precision laser processing for textile, medical packaging and food packaging industry

Two-axis galvanometer scanning optical matching component for CO₂ laser marking machines

Small-format precision carving equipment for crafts, furniture and advertising signs

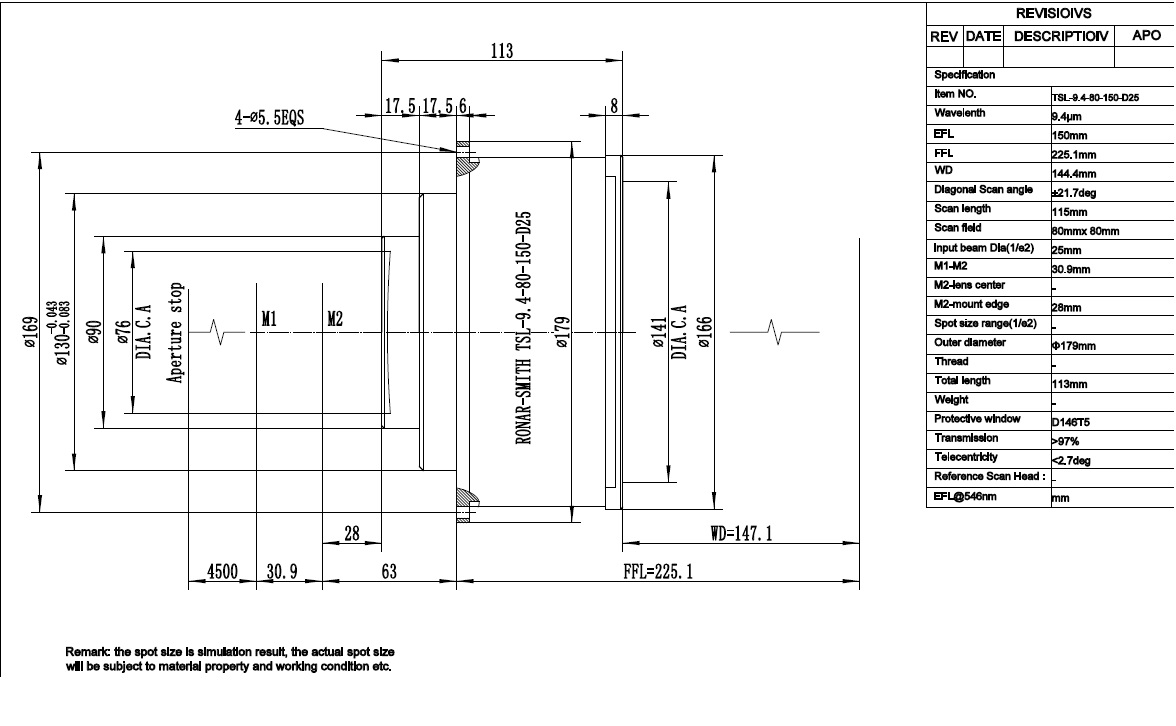

TSL-9.4-80-150-D25 lens Chart
Customized wavelength
