TSL-532-52-105Q 532nm green F-theta scan lens with 52×52 mm scanning field, 105 mm EFL

Telecentric F-Theta Scan lens By Fused Silica

Telecentric F-Theta Scan lens is a special type of lens system whereby the deflected off-axial laser beam can be per pendicularly focused to work piece as similar to the on-axial focusing beam. The advantage of the telecentric scan lens is that it is able to flatten the field curvature to the least distortion and yet offering superb spot quality throughout the scan field. For high powered laser and ultrafast laser source, we offer TSL-Q Series Telecentric F-Theta Scan Lens to mini mize thermal lensing and focal shift.

Wavelength: 532nm GreenScan

Field: 52×52mm

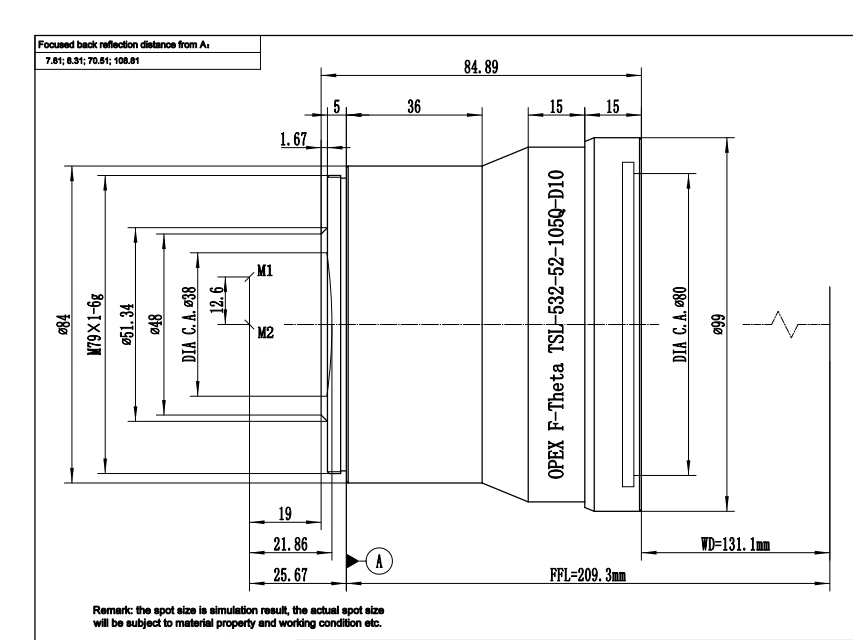

EFL (Effective Focal Length): 105mmWD (Working Distance): 131.1mmFFL (Flange Focal Length): 209.3mm

Input Clear Aperture: Φ38

Mount Thread: M79×1-6g

Application: Precision marking, laser lift-off & micro-processing for glass, PCB, crystal, jade and translucent plastic

Send email to us

Product Detail

Product Tags

532nm/Green Scan Lens, together with other series of F-theta scan lenses, supports a full spectrum of laser processing applications covering 3D dynamic scanning & printing, laser cleaning, laser cutting, laser drilling, laser engraving, laser lift-off, general laser scanning, vision scanning, laser welding, and solar panel scribing & grooving. Compatible with UV, green, fiber and CO₂ multi-wavelength laser equipment, these optical lenses are widely used for metal cutting, drilling, welding, surface marking and rust removal, precision laser lift-off of PCBs, special scribing and grooving for photovoltaic panels, high-precision machining with vision alignment, as well as 3D curved surface scanning marking, catering to industries including metal processing, electronics & semiconductors, new energy photovoltaics and precision micro-fabrication.
