Ronar Smith Optical 405nm ftheta Lens for 405nm Custom Coating Model Sl-405-110-175q

F-Theta Scan Lens made by Fused Silica

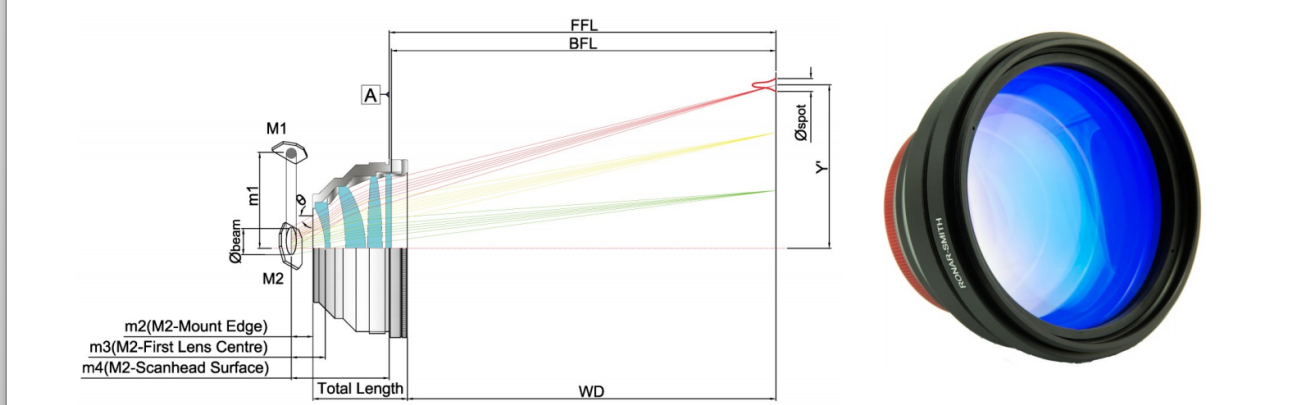

SL-Q Series F-Theta Scan Lenses are developed for ultra fast lasers with short pulse width and high pulse energy laser applications. These lenses are made with low dispersion Fused Silica with optical design to avoid back reflection and ghost image.

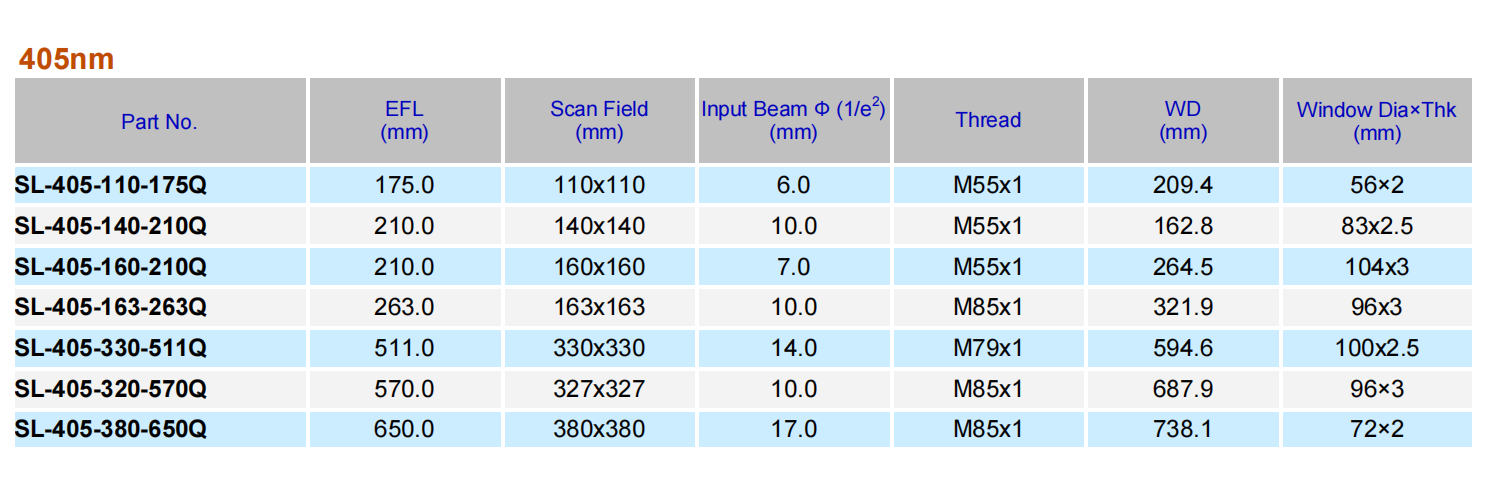

• Part No.: SL-405-140-210Q
• Wavelength: 405nm
• EFL: 210.0 mm
• Scan Field: 140×140 mm
• Input Beam Diameter: 10.0 mm
• Mount Thread: M55×1
• Working Distance (WD): 162.8 mm
• Protective Window: 83×2.5 mm
