Versatile Fiber Collimator – Wide Focal Length & NA Range for Precision Beam Collimation

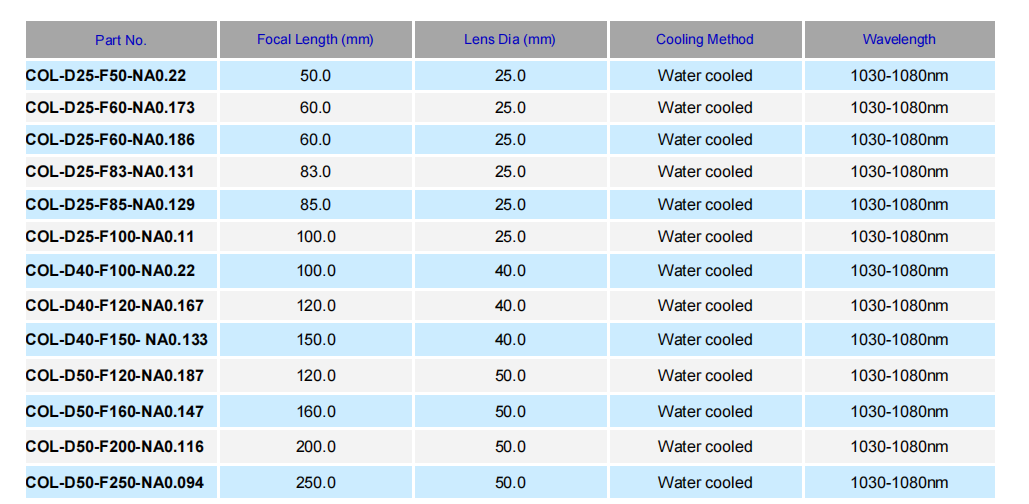

The COL Series offers one of the broadest selections of water‑cooled fiber collimators for 1030–1080nm fiber lasers. With focal lengths from 50mm to 250mm and numerical apertures from 0.094 to 0.22, you can fine‑tune the collimated beam diameter and divergence to match your cutting, welding, or cladding application. The collimator body is water‑cooled, enabling stable operation under high laser power (thousands of watts) without thermal distortion.

Model : COL-1064-D25-F100

Send email to us

Product Detail

Product Tags

Versatile Fiber Collimator

All models feature a low‑absorption AR coating for the 1030–1080nm band, minimizing thermal lensing and maximizing transmission. The water cooling circuit is integrated into the housing – simply connect to a standard chiller. These collimators are widely used in fiber laser cutting heads and remote welding stations where consistent beam quality and long service life are critical.

For applications requiring a non‑standard focal length or a specific NA, custom manufacturing is available. Choose the COL series for reliable, high‑performance fiber laser collimation.
