China Electric Laser Collimator with Motorized Focus – Fast Target Acquisition, Handheld Design for Outdoor Use Manufacture and Factory

Electric Laser Collimator with Motorized Focus – Fast Target Acquisition, Handheld Design for Outdoor Use

Motorized electronic colimator

The working principle of a laser collimator is to converge a diverging light beam through one or a group of positive focal length lenses, so that the beam is parallel to the optical axis. For example, if the beam emitted from the tip of a fiber laser is small and diverges at a few degrees, the collimator can collimate the beam into a beam with a larger diameter but a very small divergence angle.

This electric collimator can collimate the optical fiber laser, and can work effectively over long distances;handheld type,convenient outdoor operation;high-precision electric head, quickly aim at the target .

Part NO.	D52F300
Wavelength	1060-1080nm
Diameter	52mm
EFL	300mm
Type	handheld type
Power	≤2000W
NA	＜0.065

Send email to us

Product Detail

Product Tags

Electric Laser Collimator

Key Features:

Motorized electric head – enables fast, accurate aiming and focus adjustment
Handheld form factor – convenient for outdoor field operations and mobile laser setups
High precision – ensures reliable beam collimation for fiber laser systems
Long working distance – maintains beam quality over extended ranges

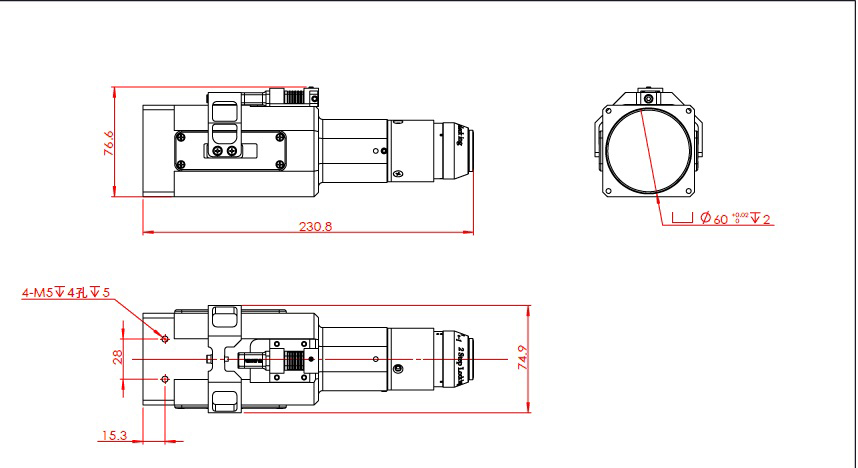

Robust mechanical housing – based on the LGM2020A0824001 outline dimensions (approx. 76.6×230.8mm) with 4‑M5 threaded mounting holes
