COL-D25-F50-QBH 1030-1080nm Water-Cooled Fiber Laser Collimator for High-Power Cutting & Welding

The Edinburgh OE COL-D25-F50 is a premium, industrial-grade fiber laser collimator engineered for demanding, high-power laser processing applications. Featuring a standard QBH interface and an advanced water-cooling structure, this collimator ensures stable optical performance and exceptional durability even under continuous kilowatt-level (kW) operations. Whether you are upgrading a fiber laser cutting machine or building a robotic welding system, this component delivers reliable beam collimation and optimized energy density.

  • Part No. : COL-D25-F50-NA0.22
  • Focal Length (mm) : 50.0
  • Lens Dia (mm) : 25.0
  • Cooling Method : Water cooled
  • Wavelength : 1030-1080nm

Product Detail

Product Tags

Features

  • -Maximum 3000W tolerable power which is suitable for high power laser machining applications
  • -Two types of mounting connecting interfaces (QB/QBH)
  • -Wide range of focal lengths
  • -Water-cooling specification: 1.8L/min, 30psi
  • -Easy operation



COL Series—Fiber Collimator

COL Series fiber collimators are used in fiber laser cutting and welding applications as collimating lenses. With low absorption coating and water cooling structure, it is able to work under high-power lasers of kilowatt level.

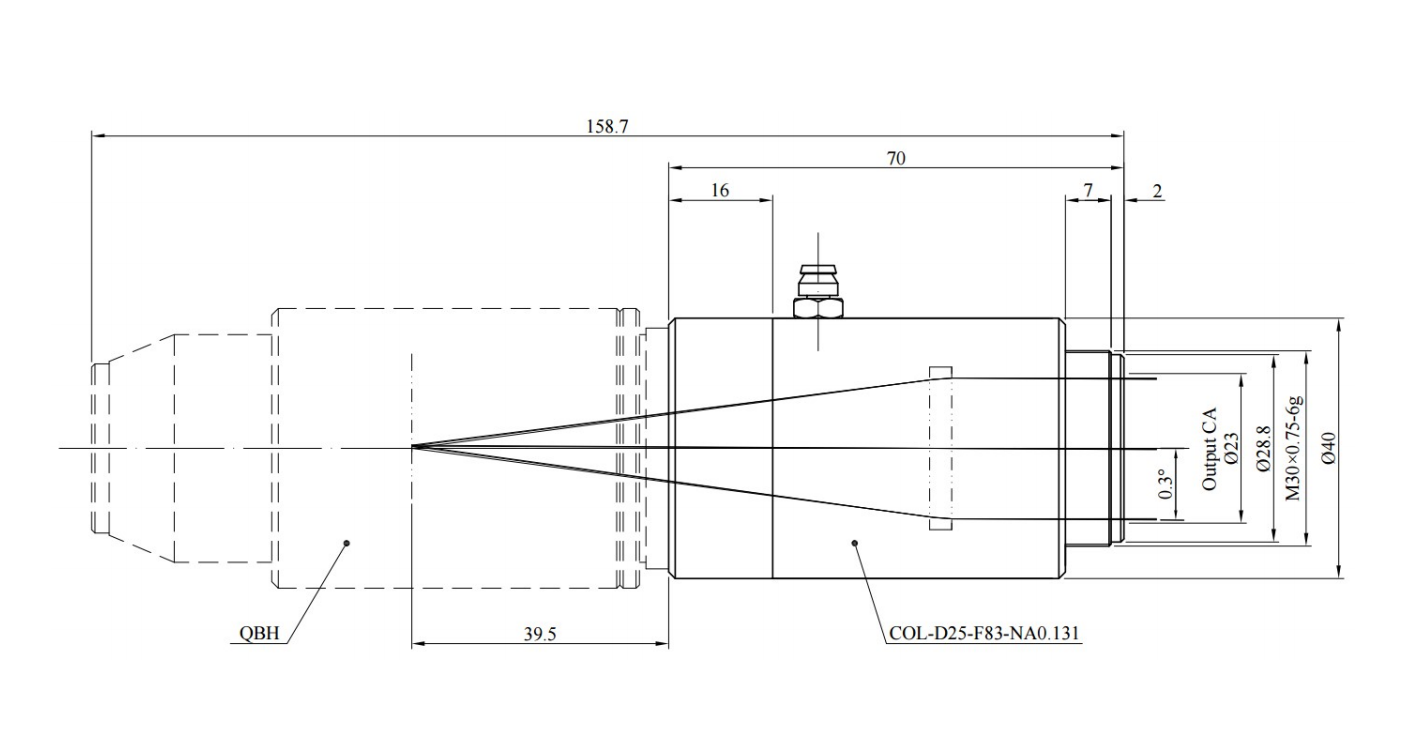

Fiber laser collimator Drawing
Part No. Focal Length (mm) Lens Dia (mm) Cooling Method Wavelength
COL-D25-F50-NA0.22 50 25 Water cooled 1030-1080nm
COL-D25-F60-NA0.173 60 25 Water cooled 1030-1080nm
COL-D25-F60-NA0.186 60 25 Water cooled 1030-1080nm
COL-D25-F83-NA0.131 83 25 Water cooled 1030-1080nm
COL-D25-F85-NA0.129 85 25 Water cooled 1030-1080nm
COL-D25-F100-NA0.11 100 25 Water cooled 1030-1080nm
COL-D40-F100-NA0.22 100 40 Water cooled 1030-1080nm
COL-D40-F120-NA0.167 120 40 Water cooled 1030-1080nm
COL-D40-F150-NA0.133 150 40 Water cooled 1030-1080nm
COL-D50-F120-NA0.187 120 50 Water cooled 1030-1080nm
COL-D50-F160-NA0.147 160 50 Water cooled 1030-1080nm
COL-D50-F200-NA0.116 200 50 Water cooled 1030-1080nm
COL-D50-F250-NA0.094 250 50 Water cooled 1030-1080nm
