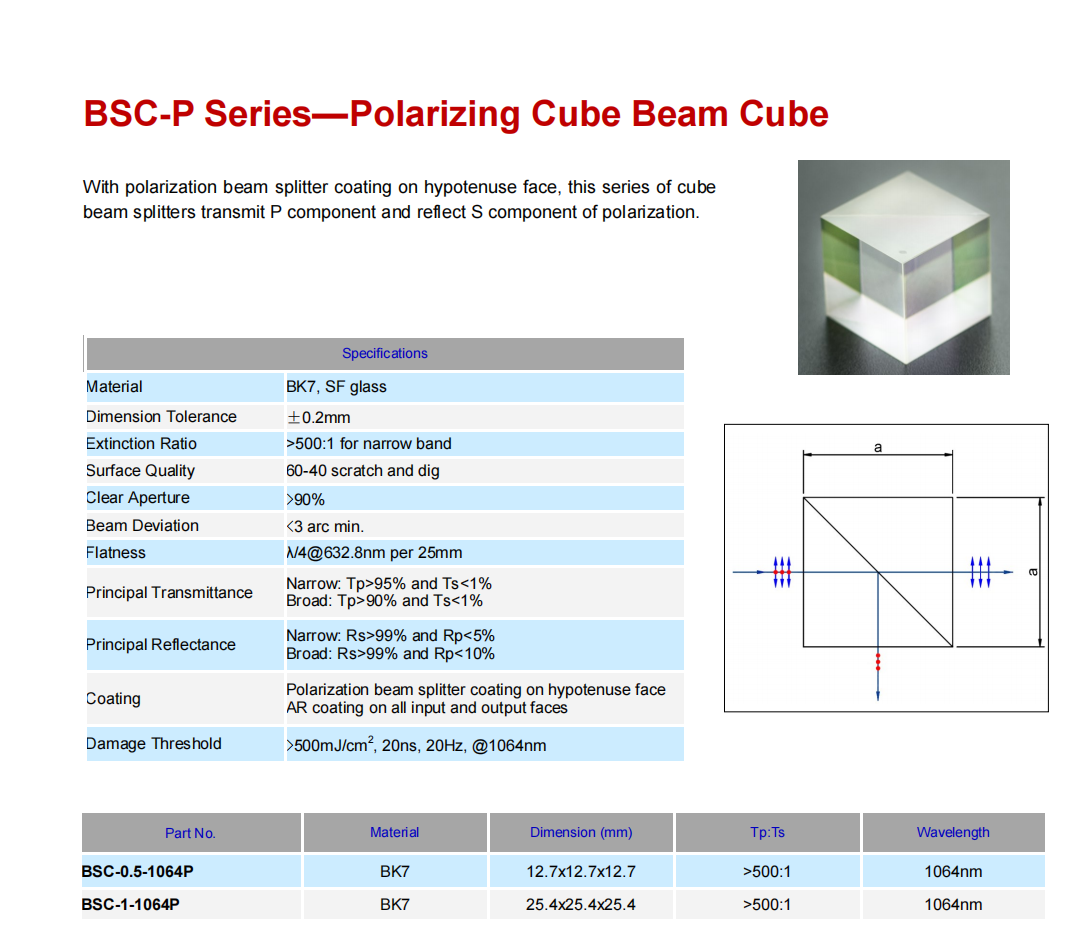

1064nm Polarizing Cube Beam Splitter | BK7 P-Polarization Splitter (BSC-P Series)

The BSC-P Series offers premium polarization beam splitting for 1064nm lasers. These BK7 cubes efficiently separate the input beam into two orthogonal polarization components: the P-polarized light is transmitted with high efficiency (>95%), while the S-polarized light is reflected (>99%). With an extinction ratio exceeding 500:1, these cubes provide excellent polarization purity for demanding optical applications.

Precision Manufacturing:

Material: BK7 Grade A Optical Glass
Dimension Tolerance: ±0.2mm
Surface Quality: 60-40 S-D
Clear Aperture: >90%

Send email to us

Product Detail

Product Tags

Beam splitter

Key Features & Benefits:

- ✅ High Extinction Ratio (>500:1): Ensures clean separation of P and S polarization components, crucial for precise polarization control and isolation.
- ✅ High Transmission & Reflection: Tp>95% and Rs>99% for narrow band 1064nm, ensuring maximum efficiency in your optical train.
- ✅ Exceptional Damage Threshold (>500mJ/cm² @1064nm): Designed to withstand high-power laser pulses, making them suitable for industrial and research laser systems.
- ✅ Precision Manufacturing:
  - Material: BK7 Grade A Optical Glass
  - Dimension Tolerance: ±0.2mm
  - Surface Quality: 60-40 S-D
  - Clear Aperture: >90%
- ✅ Available Sizes & Wavelengths: Available in 12.7mm and 25.4mm cube sizes. Also available for other common laser wavelengths upon request.
