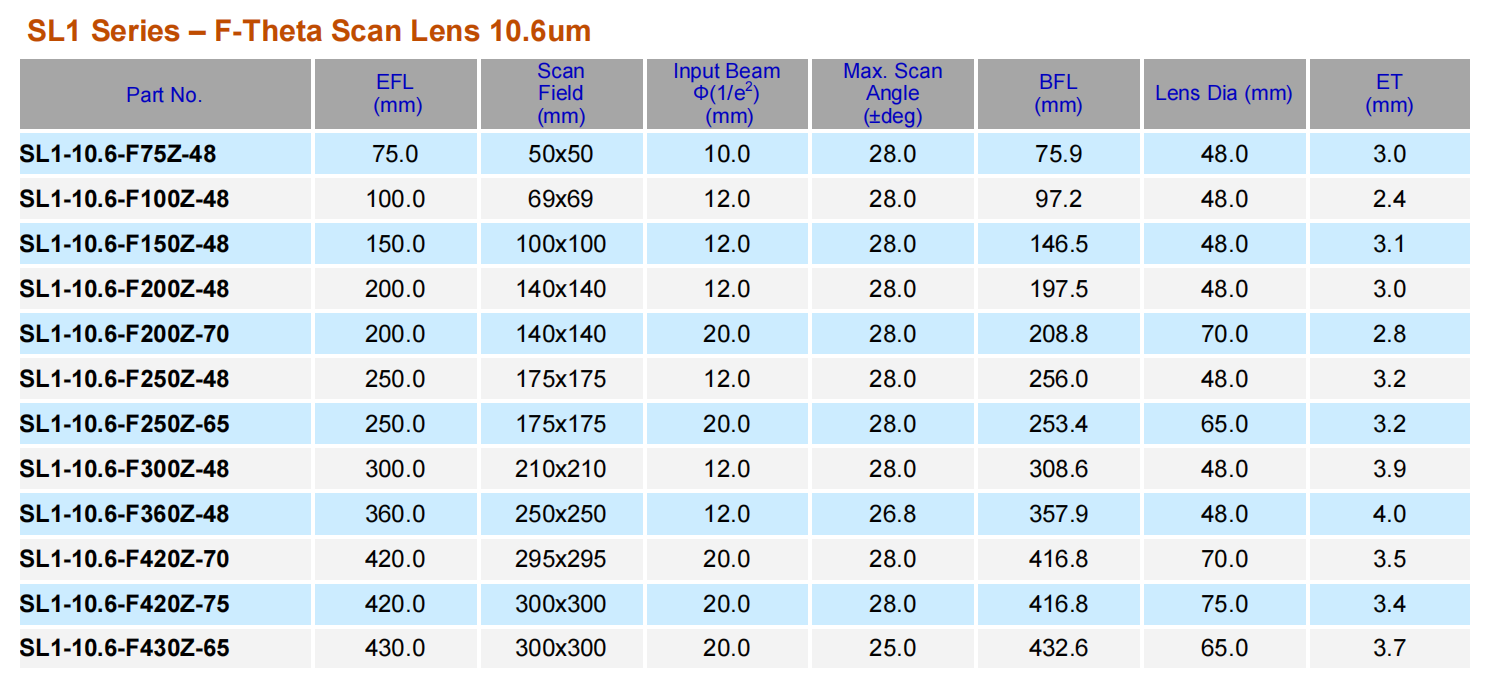

RONAR-SMITH ZnSe CO2 Laser Scan Lens 10.6μm 150mm Focal Length 110×110mm

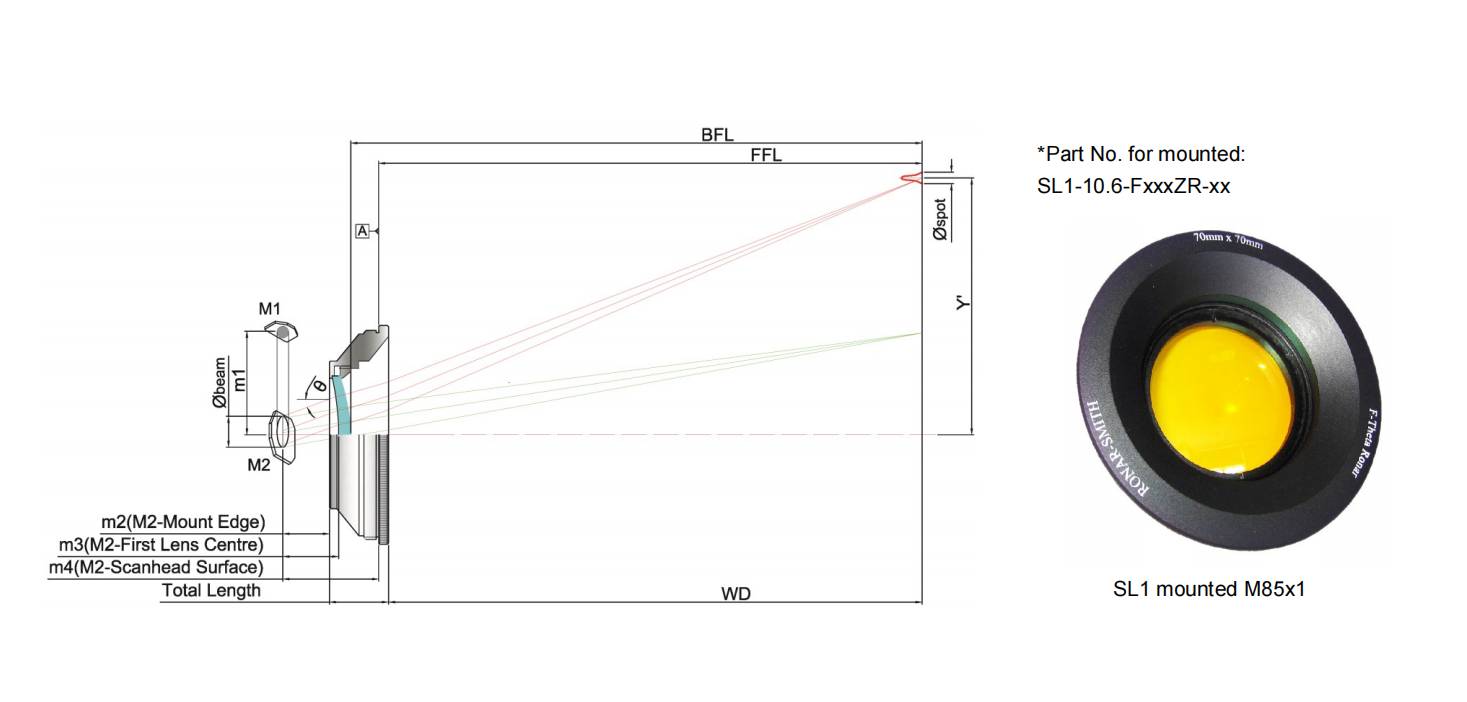

F-Theta lenses are commonly used in conjunction with galvanometer scanning mirrors in laser engraving, cutting, and marking systems. Typically the F-Theta distortion of the lens is kept less than 1% so that it is able to produce a precise spot in the flat field on the image plane.

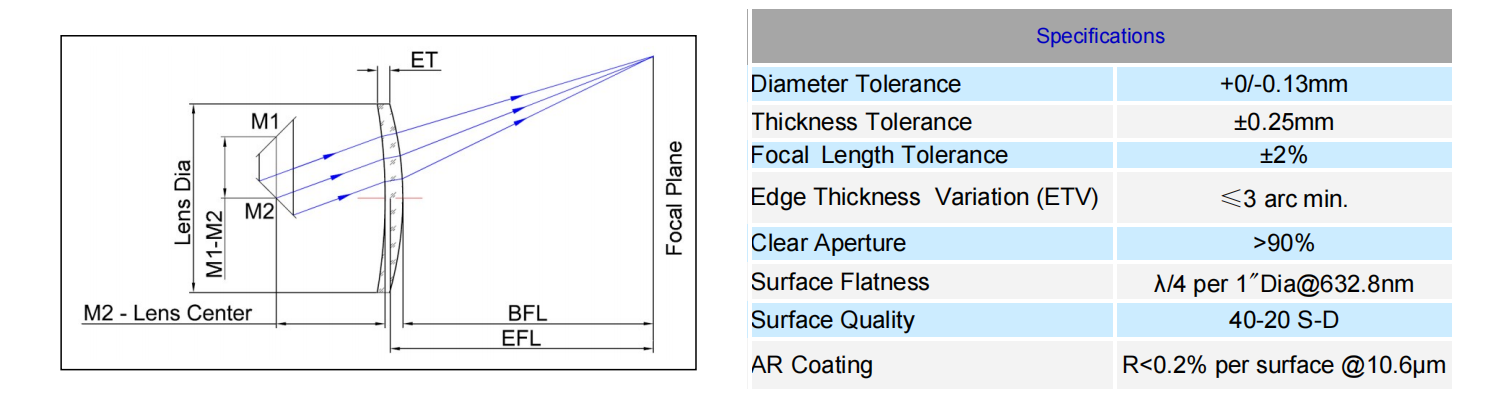

Diameter Tolerance: +0/-0.13mm

Focal Length Tolerance: ±2%

Edge Thickness Variation (ETV): ≤3 arc min.

Clear Aperture: >90%

Surface Flatness: λ/4 per 1″ Dia@632.8nm

Surface Quality: 40-20 S-D

AR Coating: R<0.2% per surface @10.6μ
