Focal length 20mm-100mm All-chalcogenide zoom lens

Focal length 20mm-100mm All-chalcogenide zoom lens Featured Image
  • Focal length 20mm-100mm All-chalcogenide zoom lens

Focal length 20mm-100mm All-chalcogenide zoom lens

This 20-100mm all-chalcogenide LWIR zoom lens offers a versatile continuous zoom range with average transmission of ≥80%, ensuring clear and reliable thermal imaging in the 8-12µm wavelength range. Its advanced optical design provides a wide field of view (up to 31.9°×6.2°) and a large 14mm image plane, making it highly compatible with 640×512, 12µm, and 17µm uncooled detectors. Built with a robust 6061-T6 aluminum housing and IP67 environmental sealing, the lens operates reliably in extreme temperatures from -40°C to 80°C. Weighing only 2044g, it features MIL-A-8625 Type II Class 2 black anodized surface treatment, making it an ideal choice for demanding surveillance, industrial inspection, and night vision applications.

Product Detail

Product Tags

Detailed optical schematic diagram of the 20-100mm all-chalcogenide zoom lens, illustrating lens group configuration and beam path. Designed for 640×512, 12µm uncooled detectors with a 14mm image plane, ensuring optimized optical performance across the full zoom range.
Comprehensive technical specification sheet for the 20-100mm all-chalcogenide zoom lens. Outlines key parameters including focal length range, F# 0.95-1.2, 8-12µm working wavelength, 14mm image plane, field of view, and -40°C to 80°C operating temperature range.

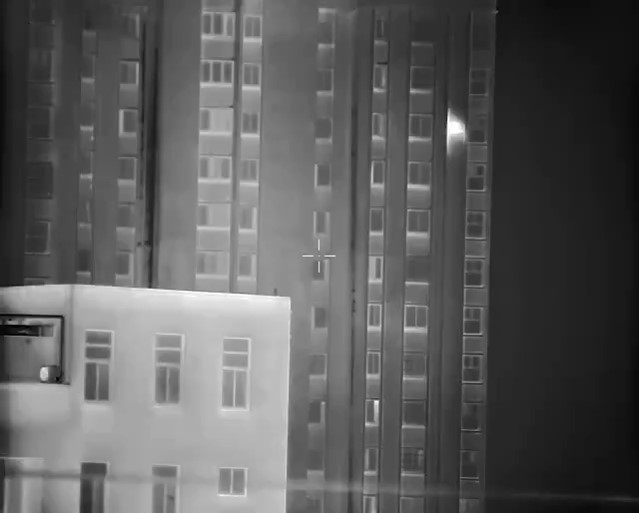

Real-world thermal imaging sample captured by the 20-100mm all-chalcogenide zoom lens, demonstrating clear and detailed infrared imaging capabilities. Ideal for security surveillance, industrial inspection, and night vision applications.
