Large Size Optical Window for Laser | Custom BK7 & Fused Silica Windows for 532nm/1064nm Laser Systems

Our WBK Series (BK7) and WFS Series (Fused Silica) laser windows are precision optical components designed for high-power laser systems. Manufactured with strict tolerances (Diameter Tolerance: +0/-0.13mm, Surface Quality: 40-20 S-D), these windows provide excellent transmission and durability for 1064nm Nd:YAG, 532nm green, and 355nm UV laser applications. Available in a wide range of diameters from 12.7mm to 150mm, they serve as ideal protective windows, output couplers, or beam delivery optics.

Send email to us

Product Detail

Product Tags

WBK Series (BK7) and WFS Series (Fused Silica) laser windows

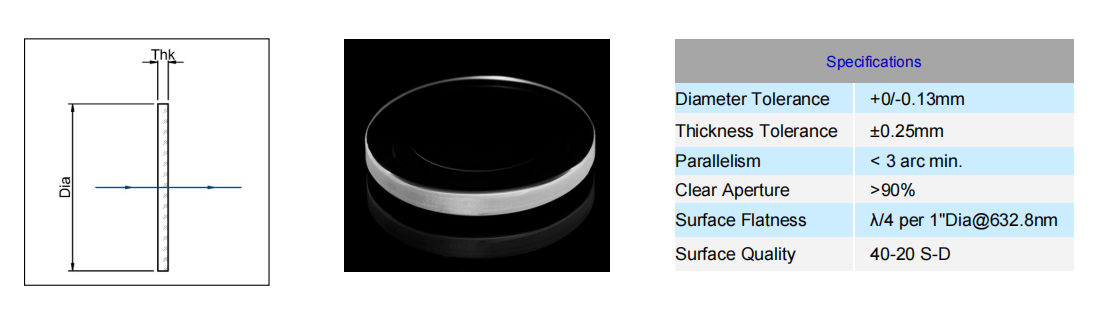

✅ Precision Manufacturing Standards: All windows feature 40-20 S-D surface quality, λ/4 flatness @ 632.8nm, <3 arc min parallelism, and >90% clear aperture. These standards ensure low wavefront distortion and minimal beam scattering.
✅ Material Flexibility: Choose between BK7 Grade A for cost-effective NIR/visible applications (1064nm, 532nm) or Fused Silica for superior UV transmission (343-355nm) and higher thermal stability.

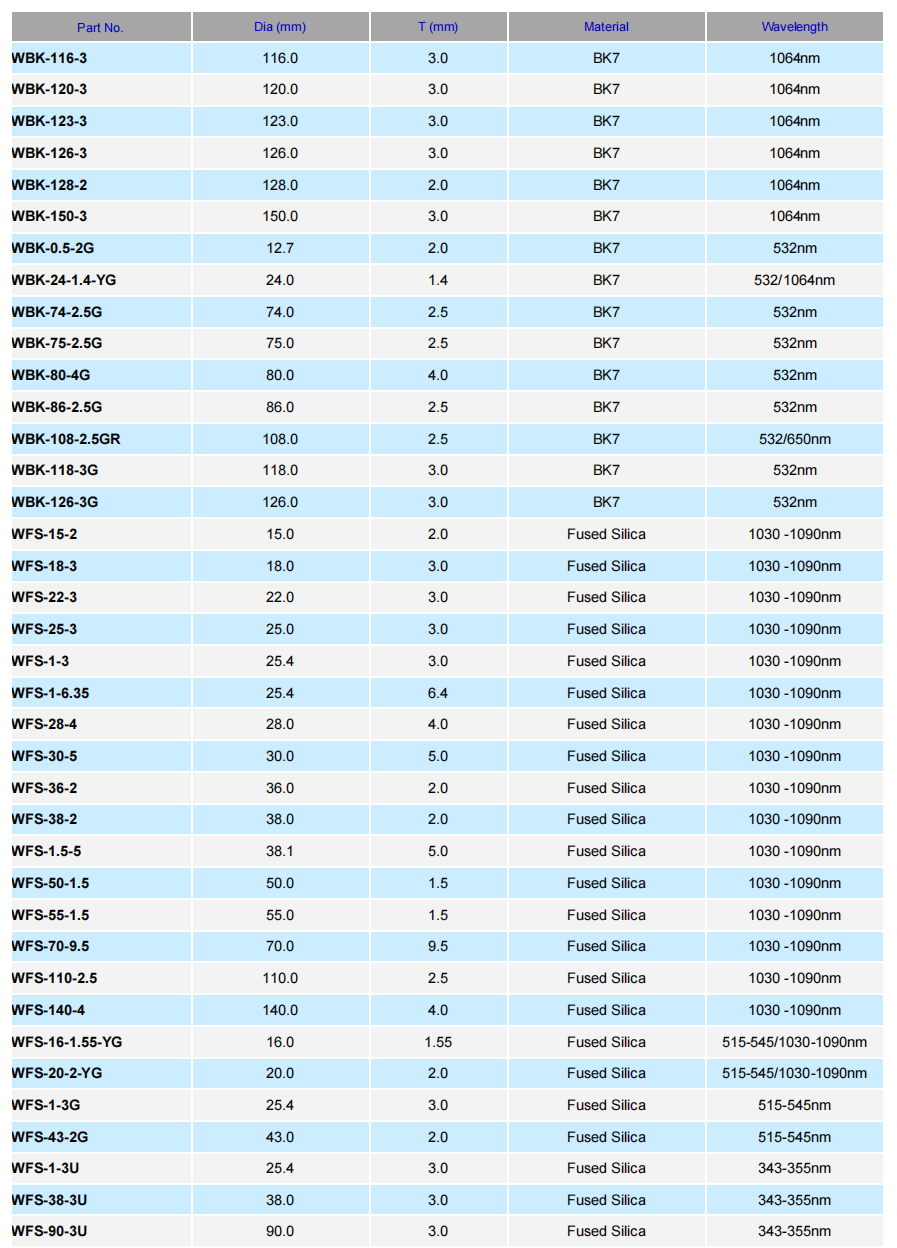

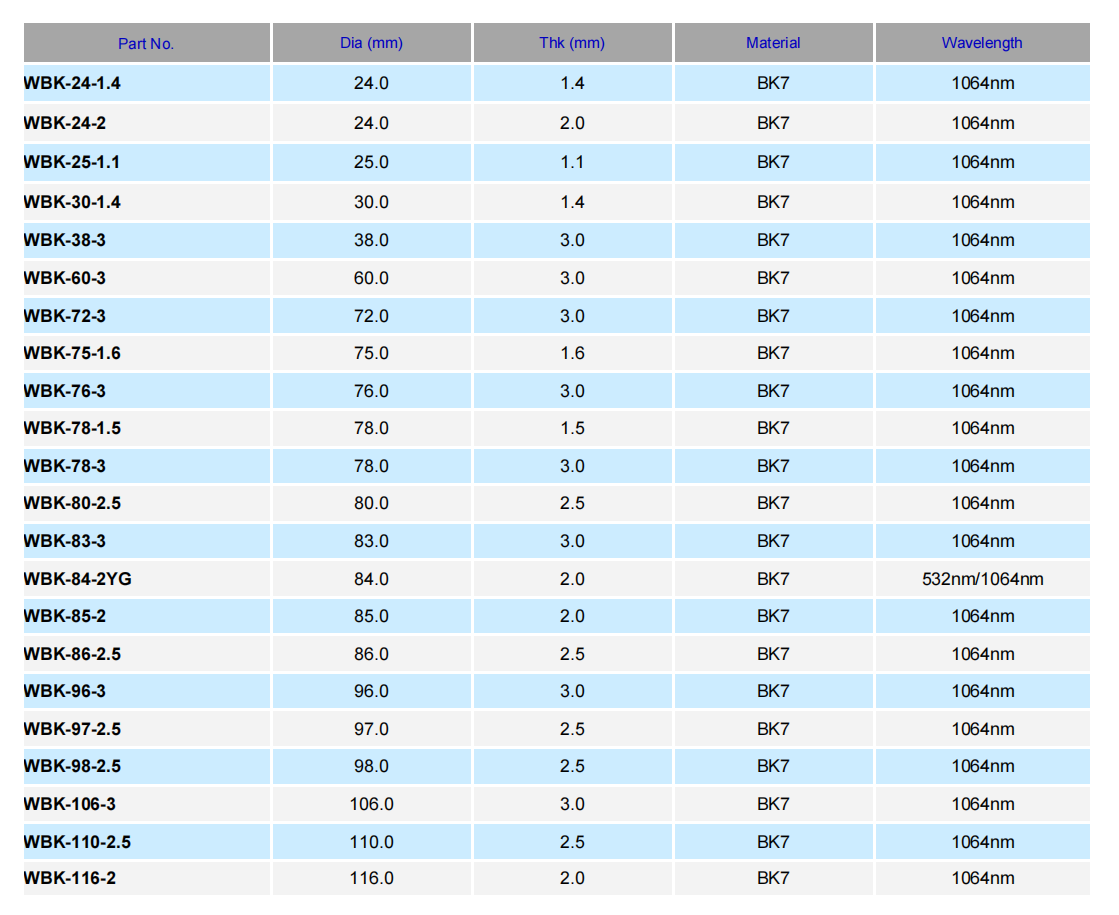

✅ Wide Size & Thickness Range: From 12.7mm to 150mm diameter, with thicknesses from 1.1mm to 9.5mm. This extensive selection ensures you can find the exact fit for your optical mount or laser head.
✅ High Transmission & Damage Threshold: Excellent transmission (>99.5% with AR coating) combined with high damage threshold makes these windows suitable for continuous wave and pulsed laser systems in demanding industrial environments.
