High Reflective 350-400m,400-750nm Dielectric HR Coating Broadband Coatings Laser Dielectric Mirrors

High Reflective 350-400m,400-750nm Dielectric HR Coating Broadband Coatings Laser Dielectric Mirrors

Our broadband dielectric reflective mirrors cover three core spectral bands: visible light, near-infrared (NIR), and infrared (IR). Designed to reroute light beams effectively, they help miniaturize optical assemblies and cut overall equipment footprint. These optical reflectors serve beam steering tasks requiring consistent high reflectance across broad wavelength ranges within visible, NIR and IR spectrums. As a professional optical manufacturer, Wavelength Opto-Electronic supplies premium broadband dielectric mirrors engineered with ultra-flat surface profiles, minimal stray light scattering and outstanding reflectivity performance.



Parameter Specification
Material BK7 or Fused Silica
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 20/10 S-D
Clear Aperture >90%
Reflectance >99%
Angle of Incidence 45°
Flatness < λ/10 @ 632.8nm per 25mm range
Chamfer Protective <0.5mm×45°
Coating Dielectric HR
Damage Threshold >5J/cm², 20ns, 20Hz, @1064nm

Product Detail

Product Tags

Part Number Wavelength (nm) Dimension (mm) Thickness (mm) Material Reflectivity (%)
RFS-1-6-35-B1 350-400 25.4 6.35 Fused Silica >99
RFS-30-3-B1 350-400 30 5 Fused Silica >99
RFS-1.5-6-35-B1 350-400 38.1 6.35 Fused Silica >99
RFS-1.5-9.5-B1 350-400 38.1 9.5 Fused Silica >99
RFS-2-9.5-B1 350-400 50.8 9.5 Fused Silica >99
RFS-1-6-35-B2 400-750 25.4 6.35 Fused Silica >99
RFS-30-3-B2 400-750 30 5 Fused Silica >99
RFS-1.5-6.35-B2 400-750 38.1 6.35 Fused Silica >99
RFS-1.5-9.5-B2 400-750 38.1 9.5 Fused Silica >99
RFS-2-9.5-B2 400-750 50.8 9.5 Fused Silica >99

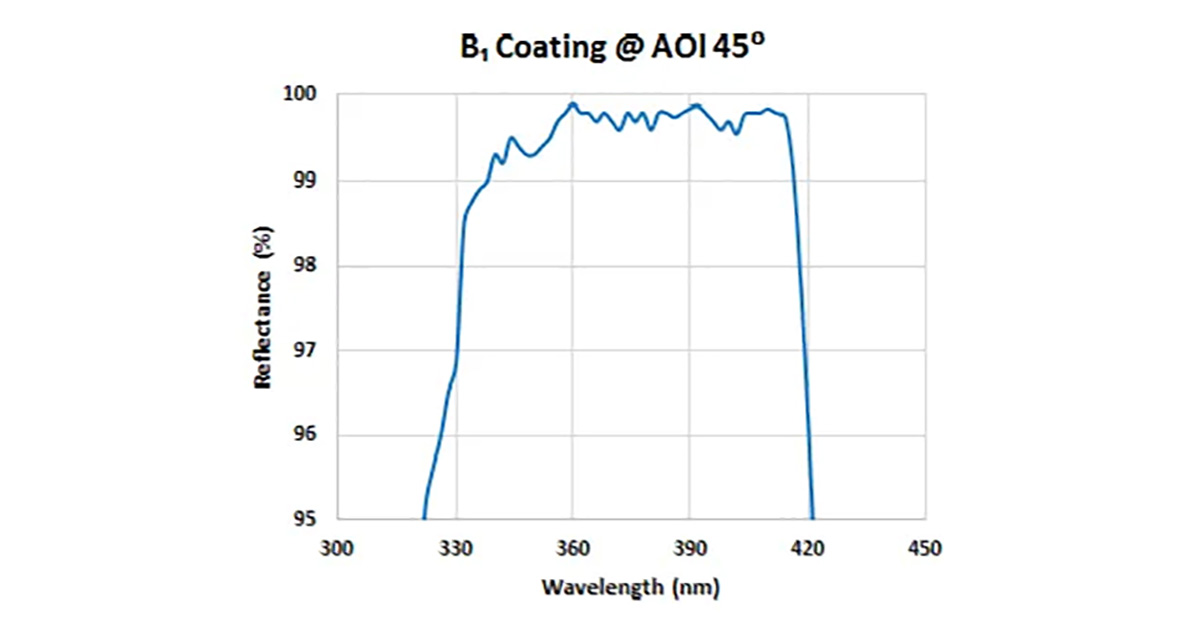

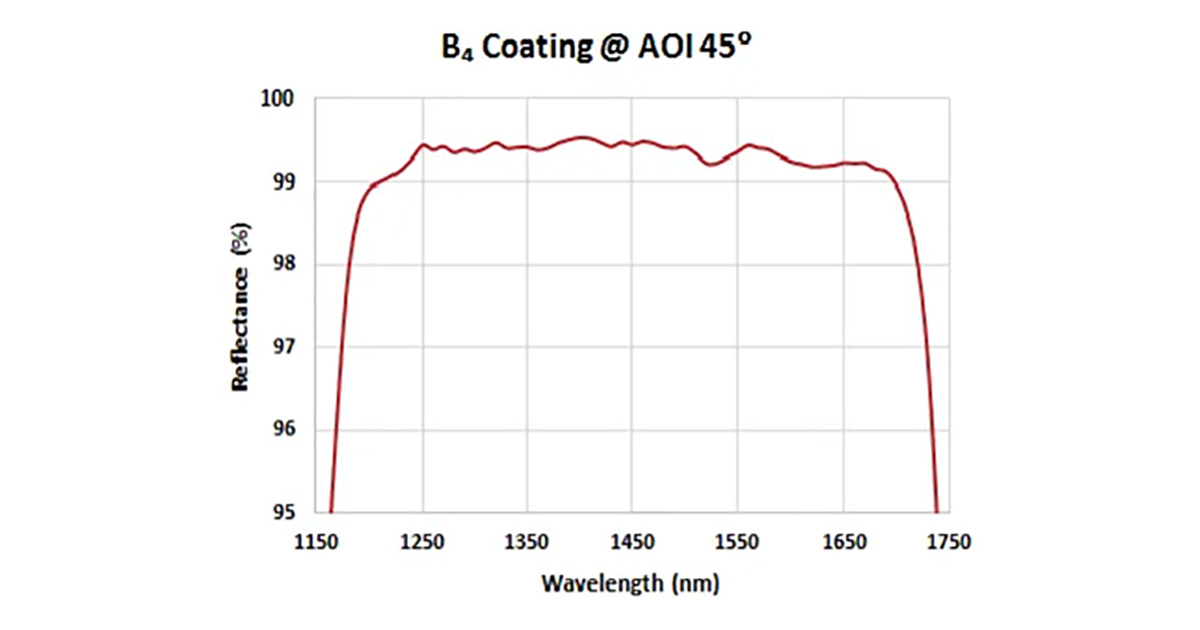

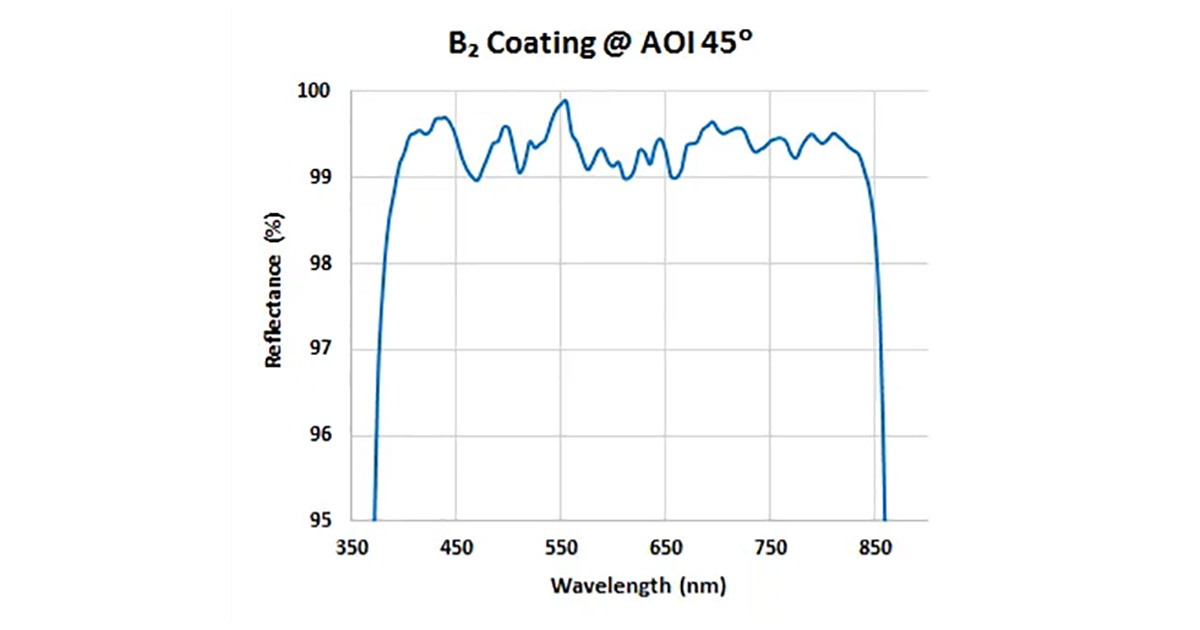

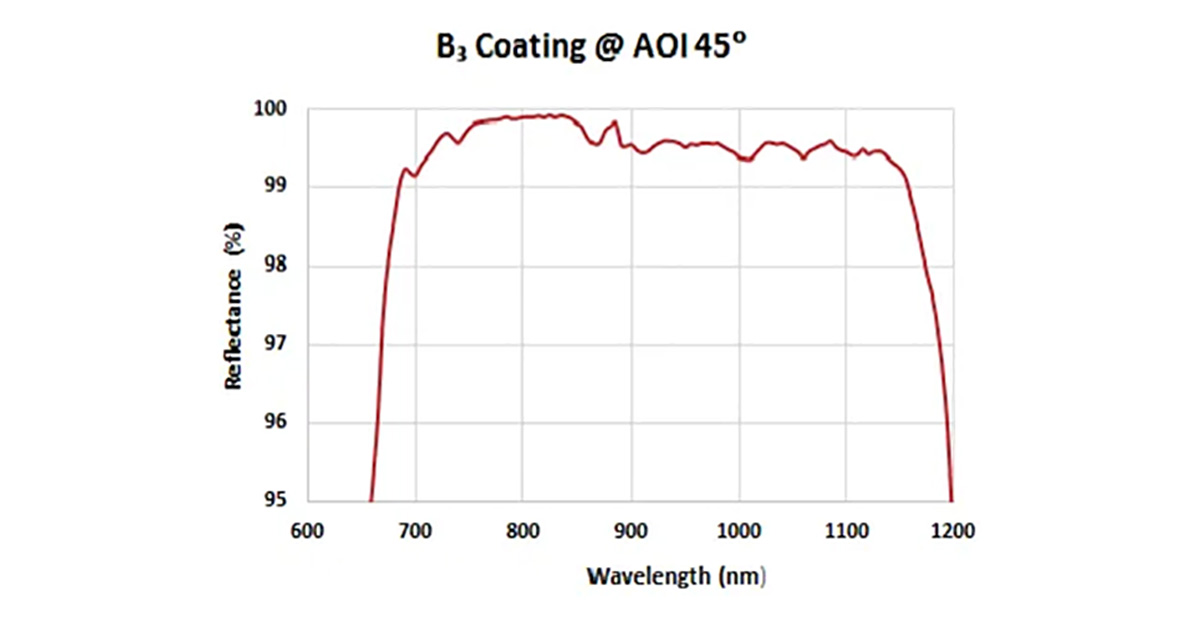

BK7 Dielectric Mirrors Coating Curve
Industrial laser marking and engraving  High-power laser cutting and welding  Laser beam delivery system integration  OEM laser head development  Custom laser processing equipment  High-volume laser production lines
Customized wavelength
