355nm telecentric F-Theta lens with 32mm EFL, 8x8mm scan field, 1° telecentric angle and M79x1 mount. 2.2-2.5µm spot for UV laser marking, PCB drilling and wafer scribing.



Model: TSL-355-8-32-D10-V1

Effective Focal Length (mm): 32

Scanning Area (mm): 88

Entrance Pupil (mm): 10

Scan Angle (°): ±10.2

Telecentric Angle (°): 1

Thread Interface: M791

Flange Distance (mm): 60.3

Working Distance (mm): 16.3

M2 – Thread End Face: 26.29

Focus Spot Diameter (μm) (Center / Edge): 2.2-2.5



Product Detail

Product Tags

  1. F-theta lenses are commonly used in laser marking, welding, engraving and other applications, usually matched with galvanometer scanners.
  3. For telecentric f-theta lenses, the outgoing light is always perpendicular to the working surface. The focused spot size remains uniform across the entire field of view, widely applied in precision cutting, marking and other applications.
  5. Distortion ＜1%, Telecentricity ＜4°

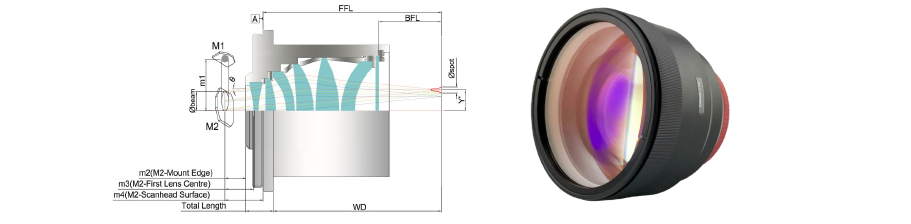

355nm telecentric F-Theta lens with 32mm EFL, 8x8mm scan field

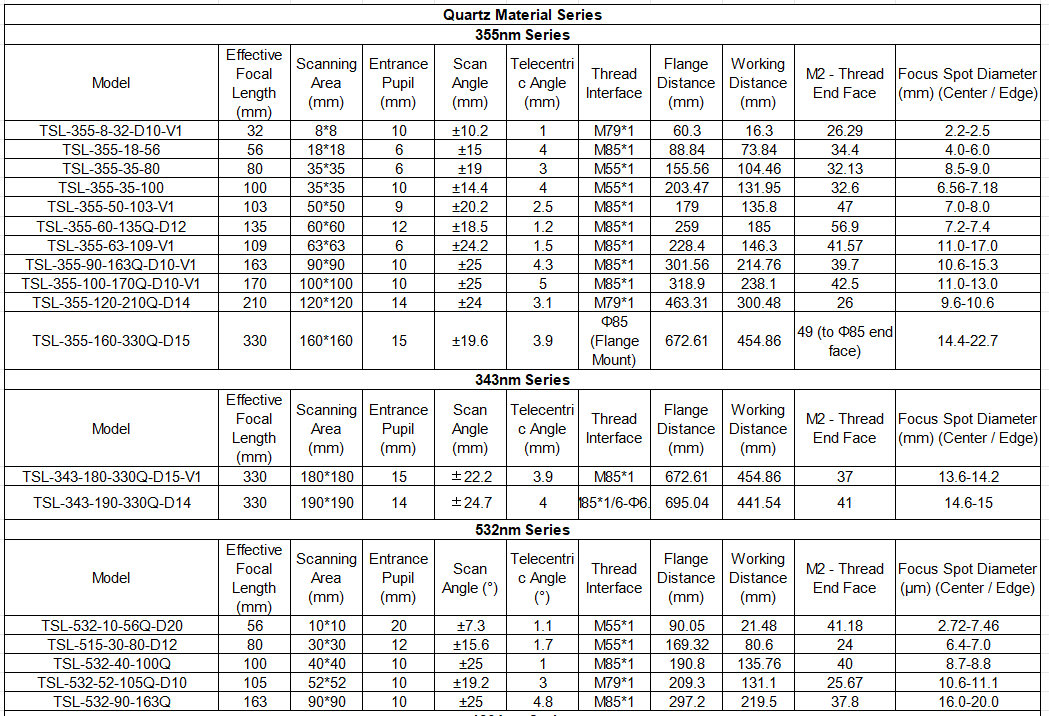

Specification table for high-power 355nm UV F-Theta scan lenses, featuring fused silica options, 32mm EFL, 8x8mm scan area, and 1° telecentric design for precision laser marking and cutting.
Datasheet for 355nm UV telecentric F-Theta lens series, including models with various focal lengths, scan fields, entrance pupils, and M79x1 thread interfaces for laser scanning systems.
Technical specification table for TSL-355-8-32-D10-V1 355nm telecentric F-Theta lens, detailing 32mm focal length, 8x8mm scan field, 1° telecentric angle, M79x1 mount, and 2.2-2.5µm spot diameter.
