OPEX Scan Lens 420mm EFL, 14mm Input Beam for 1064nm Fiber Lasers

The OPEX SL-1064-280-420Q-D14-V2 is a high-performance F-theta scan lens built for 1064nm fiber laser systems. Featuring a 420mm effective focal length and a 14mm input beam diameter, this lens is designed to deliver stable, high-quality focusing across a 280x280mm scanning area. It is an excellent choice for applications requiring a large field of view without sacrificing optical precision.

Wavelength: 1064nm
EFL: 420mm
Scan Field: 280mm × 280mm
Scan Length: 395mm
Scan Angle: ±27.1°
Working Distance (WD): 499.38mm
Front Focal Length (FFL): 543.55mm
Input Beam Diameter (1/e²): 14mm
Spot Size Range (1/e²): 57 – 64.8μm
Transmission: >97%
Reference EFL @ 546nm: 403.5mm

Send email to us

Product Detail

Product Tags

Key Selling Points

Model SL-1064-280-420Q-D14-V2 – Precision F-theta lens from OPEX, engineered for stable performance.

420mm EFL – Offers a long working distance, ideal for varying workpiece heights.

14mm Input Beam – Optimized for high-power fiber lasers, ensuring efficient power delivery.

280x280mm Scan Field – Supports large-format marking without needing to move the workpiece.

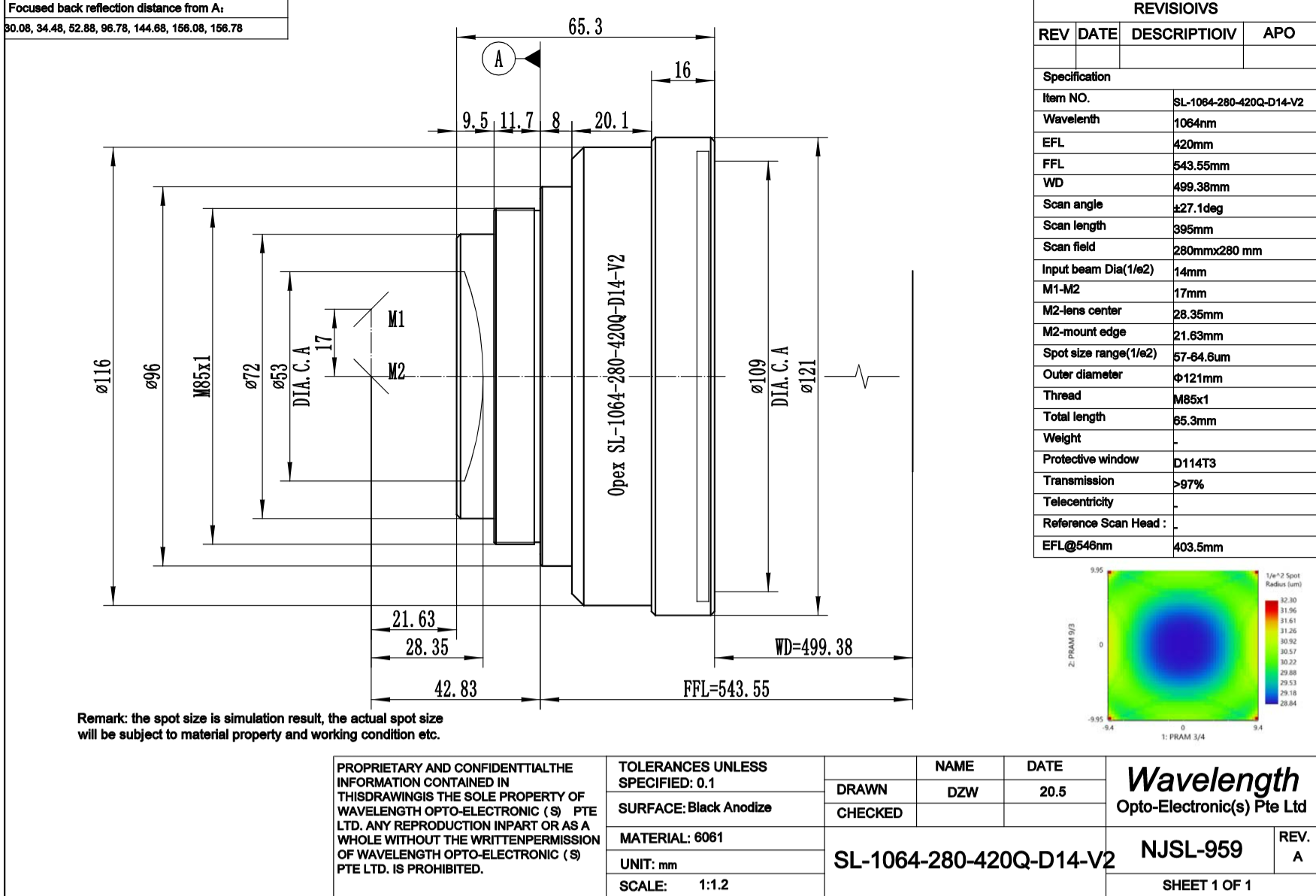

Complete Engineering Support – Full optical and mechanical drawings available for system integration.

OPEX SL-1064-280-420Q-D14-V2 F-theta

OPEX F-theta scan lens

Previous: SL-1064-280-420Q-D14-V2 F-theta Lens | 1064nm, 420mm EFL, 280x280mm Field

Next: OPEX SL-1064-280-420Q-D14-V2 Laser Scan Lens | 420mm EFL, 395mm Scan Length, 280x280mm Field

1064nm fiber laser optics

14mm input beam lens

Industrial F-theta lens

Laser scan lens

OPEX 420mm EFL scan lens
