High Precision Laser Beam Profiler & Laser Beam Quality Analyzer

Achieve precise laser diagnostics with our high-performance Beam Profiler system. Designed for both scientific and industrial applications, this optical instrument offers an ultra-wide spectral range (400nm to 1700nm) for InGaAs variants. The device features high-resolution sensors (up to 5μm pixel size) ensuring accurate measurement of laser spot size, elliptical shape, and power density distribution for continuous and pulsed lasers. Our analyzer complies with international standards (ISO 11146/13694) and provides automated M2 factor fitting, which is crucial for maintaining optimal beam quality in precision laser cutting, welding, and research laboratories. The integrated design, coupled with built-in attenuation for up to 500W power handling, simplifies high-power beam measurement, making it a reliable tool for quality control in industrial manufacturing.

Product Classification:

Standard Beam Profilers

Compact Beam Profilers

Medium Power Beam Profilers

Microfocus Point Beam Profilers

Send email to us

Product Detail

Product Tags

Standard Beam Profilers
Part No.	Spectral Range (nm)	Beam Size (mm)	Max Power Density (W/cm²)	Resolution	Pixel Size (μm)	Sensor Size (mm)	Frame Rate (fps)
BFD0307UK-Basic	340-1100 [Opt: 190-340]	0.034-7.1	50	2448×2048	3.45	8.4×7.1	5-10
BFN0204UB-Basic	340-1100 [Opt: 1100-1350]	0.022-4.3	50	2592×1944	2.2	5.7×4.3	5-10
BFN0307UK-Basic	340-1100 [Opt: 190-340]	0.034-7.1	50	2448×2048	3.45	8.4×7.1	5-10
BFN0310UK-Basic	340-1100 [Opt: 300-340 \| 1100-1350]	0.034-9.8	50	4096×3072	3.45	13.1×9.8	5-10
BFN0511UK-Basic	340-1100 [Opt: 190-340 \| 1100-1350]	0.055-11.3	50	2048×2048	5.5	11.3×11.3	5-10
BFN0512UP-Basic	340-1100	0.050-12.8	50	2560×2560	5	12.8×12.8	5-10
BFN0615UP-Basic	340-1100 [Opt: 1100-1350]	0.064-15.8	50	3288×2470	6.4	21.1×15.8	5-10
BFN0622TP-Basic	340-1100 [Opt: 1100-1350]	0.064-22.4	50	7000×7000	6.4	22.4×22.4	5-10
BFNS0505GK-Basic	340-1100 [Opt: 1100-1750]	0.050-5.1	50	1280×1024	5	6.4×5.1	2-10

Compact Beam Profilers
Part No.	Spectral Range (nm)	Beam Size (mm)	Max Power (W)	Resolution	Pixel Size (μm)	Sensor Size (mm)
BFD0307UK-RAC0D	190-340	0.035-7.1	10	2448×2048	3.45	8.4×7.1
BFN0204UB-RAC0N	340-1100	0.022-4.3	50	2592×1944	2.2	5.7×4.3
BFN0307UK-RAC0N	340-1100	0.035-7.1	50	2448×2048	3.45	8.4×7.1
BFN0310UK-RAC0N	340-1100	0.032-9.8	50	4096×3072	3.45	13.1×9.8

Medium Power Beam Profilers
Part No.	Spectral Range (nm)	Beam Size (mm)	Max Power	Pixel Size (μm)	Sensor Size (mm)
BFN0310UK-RAC5Y-WA	1030-1080	0.05-9.8	300W, focused spot size >=50um, CW 500W, focused spot size >=100um, CW	3.2	13.1×9.8

Microfocus Point Beam Profilers
Part No.	Spectral Range (nm)	Beam Size (mm)	Max Power (W)	Magnification	Resolution (渭m)	Sensor Size (mm)	Frame Rate (fps)
BFD0307UK-RAC-X10D	248-266	0.005-0.5	1	10X	0.5	5	5-10
BFN0205GK-RAC-X10U	343-355	0.005-0.5	3	10X	0.5	5	5-10
BFN0307UK-RAC-X10U	343-356	0.005-0.5	3	10X	0.5	5	5-10
BFN0310UK-RAC-X05GW	515-532	0.01-1	2.5	5X	1	5	5-10
BFN0310UK-RAC-X10G	515-532	0.005-0.5	5	10X	0.5	5	5-10
BFN0310UK-RAC-X10GW	515-532	0.005-0.5	2.5	10X	0.5	5	5-10
BFN0310UK-RAC-X20GW	515-532	0.0025-0.25	2.5	20X	0.25	5	5-10
BFN0310UK-RAC-X50GW	515-532	0.001-0.1	2.5	50X	0.1	5	5-10
BFN0310UK-RAC-X05NW	900-1100	0.01-1	5	5X	1	5	5-10
BFN0310UK-RAC-X10N	900-1100	0.005-0.5	10	10X	0.5	5	5-10
BFN0310UK-RAC-X10NW	900-1100	0.005-0.5	5	10X	0.5	5	5-10
BFN0310UK-RAC-X20NW	900-1100	0.0025-0.25	5	20X	0.25	5	5-10
BFN0310UK-RAC-X50NW	900-1100	0.002-0.1	5	50X	0.2	5	5-10
BFN0310UK-RAC-X05VW	400-800	0.01-1	0.5	5X	1	5	5-10
BFN0310UK-RAC-X10VW	400-801	0.005-0.5	0.5	10X	0.5	5	5-10
BFN0310UK-RAC-X20VW	400-802	0.0025-0.25	0.5	20X	0.25	5	5-10
BFN0310UK-RAC-X50VW	400-803	0.001-0.1	0.5	50X	0.1	5	5-10

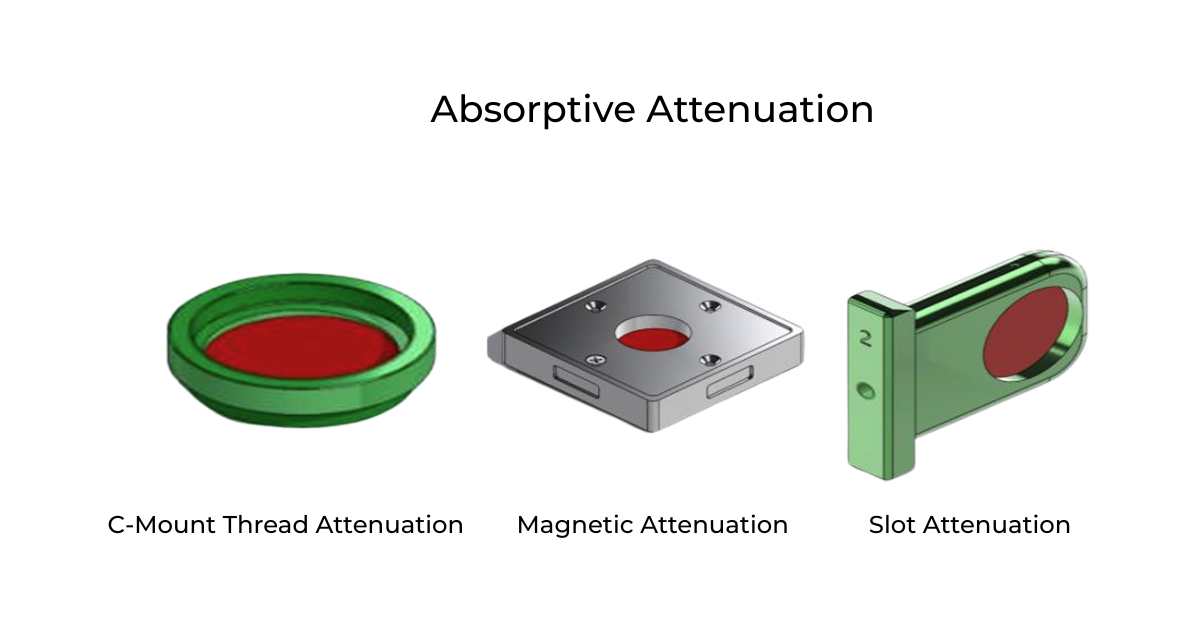

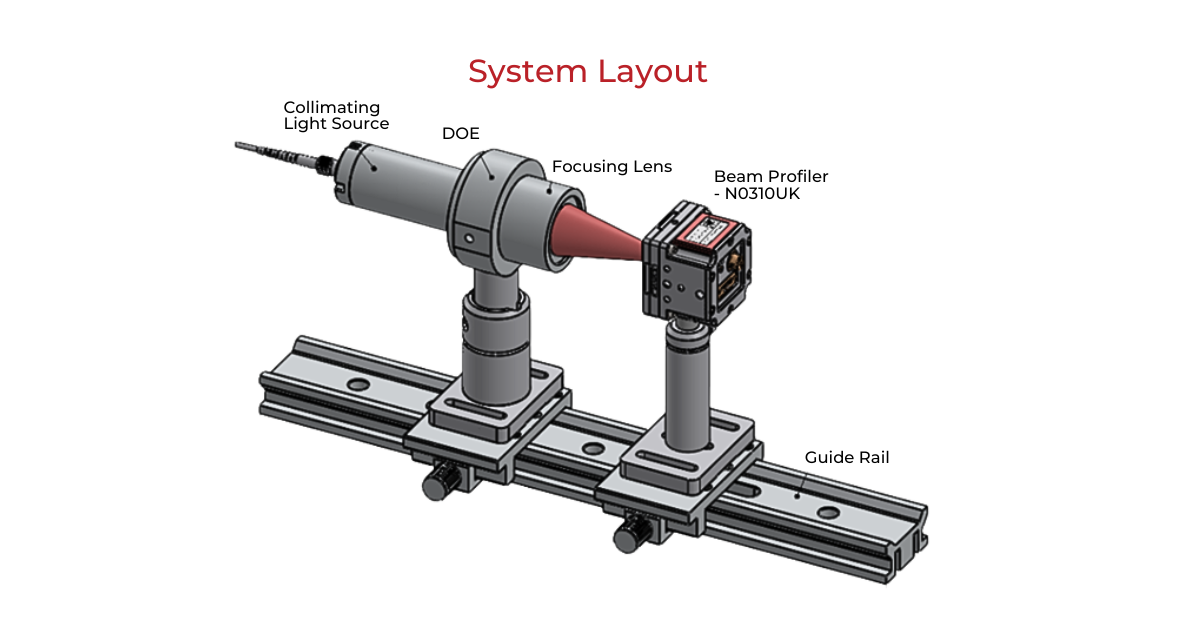

Attenuator Accessories
Serial No.	Name	Configuration Type	Main Parameter
1	Magnetic Attenuation	TAM-05	OD0.5
2	Magnetic Attenuation	TAM-10	OD1.0
3	Magnetic Attenuation	TAM-20	OD2.0
4	Magnetic Attenuation	TAM-30	OD3.0
5	Magnetic Attenuation	TAM-40	OD4.0
6	C-Mount Thread Attenuation C	TAC-05	OD0.5
7	C-Mount Thread Attenuation	TAC-10	OD1.0
8	C-Mount Thread Attenuation	TAC-20	OD2.0
9	C-Mount Thread Attenuation	TAC-30	OD3.0
10	C-Mount Thread Attenuation	TAC-40	OD4.0
11	Slot Attenuation	TAS-00	OD0.0
12	Slot Attenuation	TAS-05	OD0.5
13	Slot Attenuation	TAS-10	OD1.0
14	Slot Attenuation	TAS-20	OD2.0
15	Slot Attenuation	TAS-30	OD3.0
16	Slot Attenuation	TAS-40	OD4.0
17	Slot Attenuation	TAS-45	OD4.5
18	Optical Support	BP75	Manually lift Z-axis direction
19	Manual Lift Table	MZ10	Lift z = 10mm

Code	OD	Attenuation Value	Residual Value (%)
1	0.1	20.56718	79.433
2	0.2	36.90427	63.096
3	0.3	49.88128	50.119
4	0.4	60.18028	39.811
5	0.5	68.37722	31.623
6	0.6	74.98114	25.119
7	0.7	80.04738	19.953
8	0.8	84.15107	15.849
9	0.9	87.41075	12.589
10	1	90	10
11	2	99	1
12	3	99.9	0.1
13	4	99.99	0.01
14	5	99.999	0.001

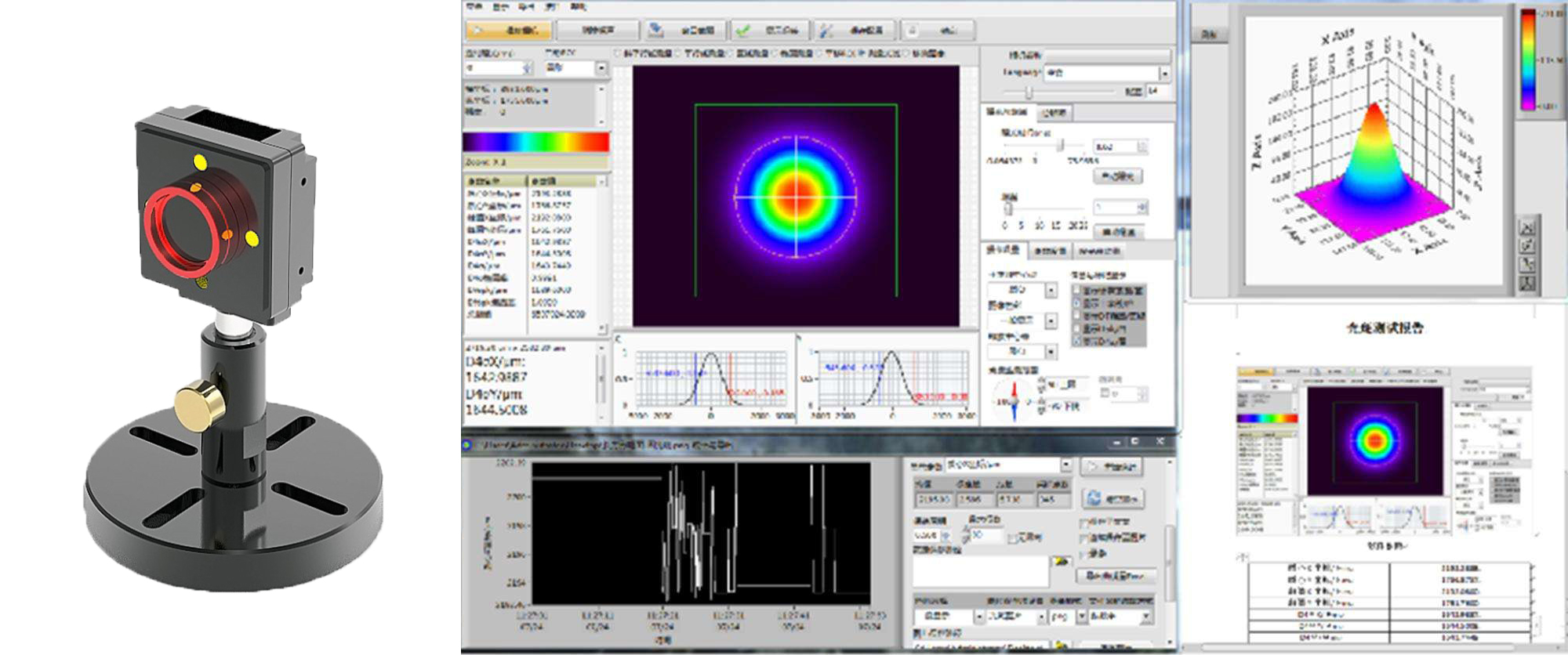

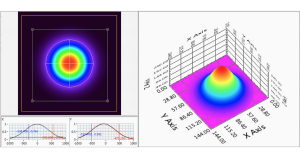

Beam Profilers Software
Category	Features
Views & Visualization	2D View, 3D View, XY Section View, Multiple ROIs, Zoom function (all visualization and measurement windows)
Beam Parameters & Measurements	Beam width, centroid, ellipticity, Beam Quality M² Tools, Beam Stability (Peak, Centroid X/Y, Beam Width: D4, DPK, DT), Directivity Detection
ROI & Analysis Tools ROI	ROI adjustment (centroid, peak, beam width), Calculate (threshold level, highest pixel)
Camera & Trigger Settings	Camera settings (exposure time, gain), Exposure Auto, Gain manual adjustment, Trigger settings (delay)
Data Management	Real-time measurement data / save data, Save/Open data, Beam quality, Beam stability, Directivity Detection
Import Options	Data (CSV), 8-bit grayscale image
Export Options	Data (CSV), Image (BMP/PNG, 8-bit grayscale), Video (capture/playback), Generate report
