Versatile CO₂ Laser F-Theta Scan Lens for Wood, Acrylic, Leather & Paper Engraving – RONAR-SMITH SL3-9.4-50-80W

Versatile CO₂ Laser F-Theta Scan Lens for Wood, Acrylic, Leather & Paper Engraving – RONAR-SMITH SL3-9.4-50-80W

The RONAR-SMITH SL3 Series Triplet F-Theta Scan Lens is a highly versatile optical solution for a wide range of non-metal CO₂ laser applications. From engraving intricate designs on wood and acrylic to cutting high-quality paper and leather, this lens delivers consistent, high-quality results. The Triplet design ensures that the laser spot remains uniform across the entire 50x50mm field, providing excellent edge quality and detail regardless of the material.

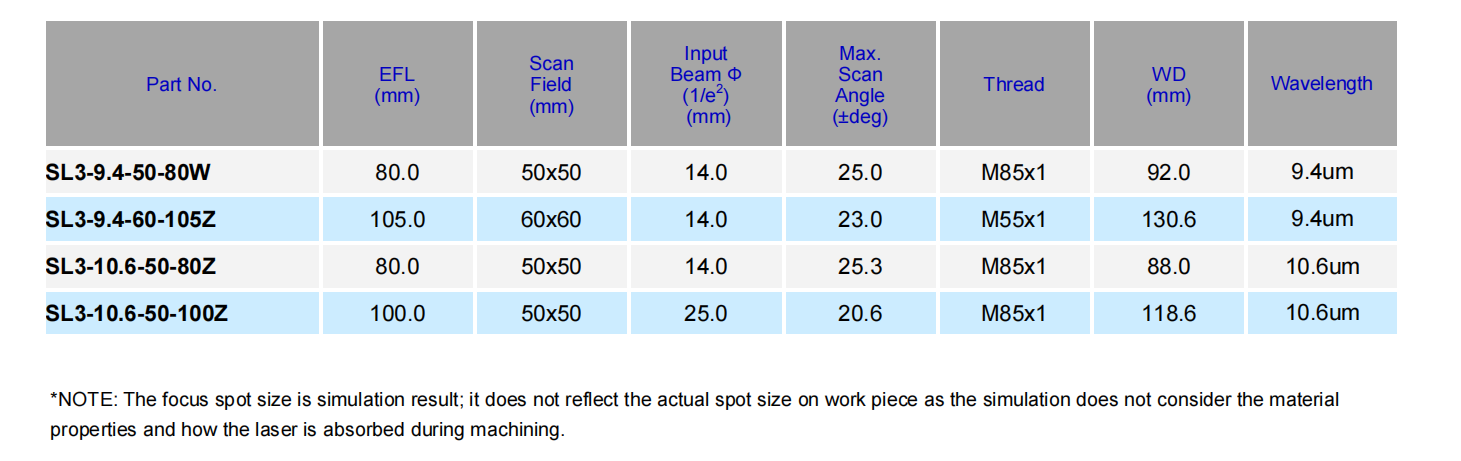

EFL 80.0mm
Scan Field 50×50mm
Input Beam 14.0mm
Max. Scan Angle 25.0 deg
Thread M85×1
WD 92.0mm
Wavelength 9.4um

Product Detail

Product Tags

SL3 Series - Triplet F-Theta Scan Lens 9.4/10.6um

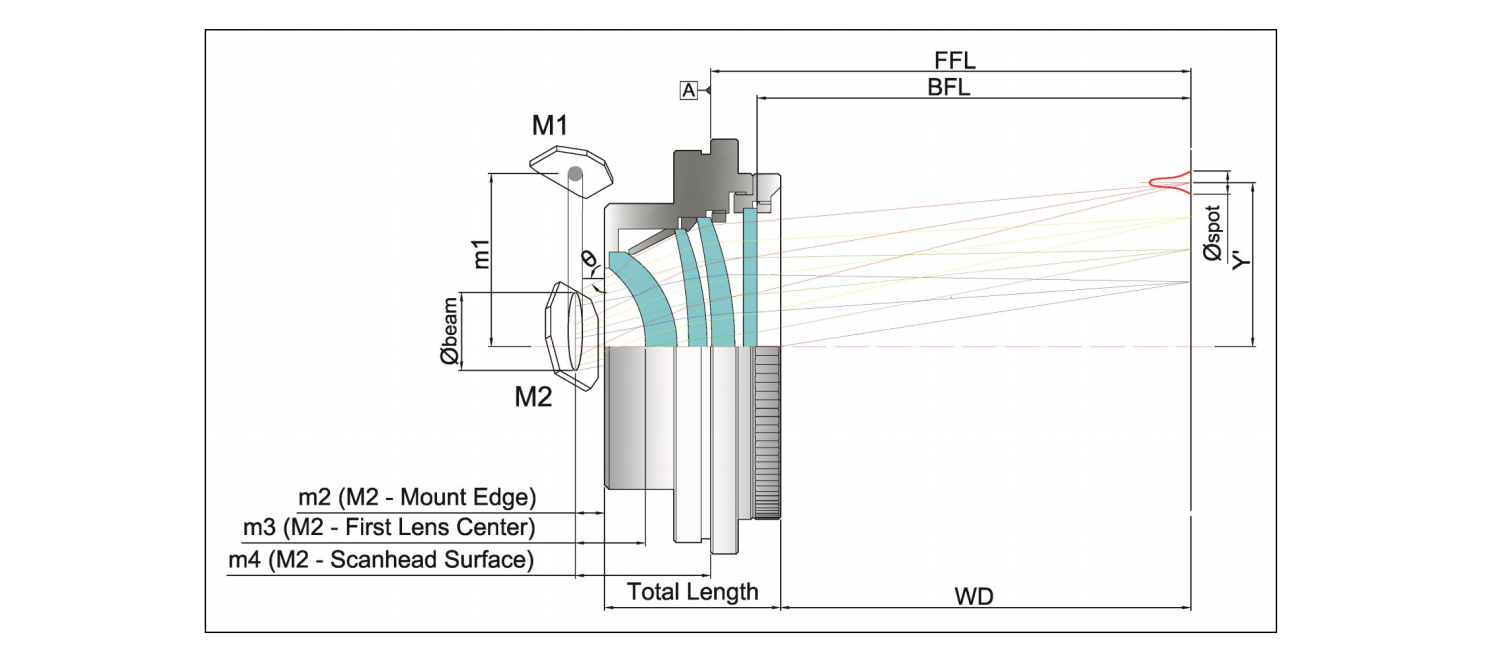

SL3 series F-Theta scan lenses consist of three ZnSe elements with or without protective window; they can reduce spot distortion and achieve more even spot size over the scanning field compared to SL1 and SL2. SL3 is used for finer CO₂ laser applications like electronic micro processing.

Lens adaptors for major scan head providers are available upon request.

CO₂ laser F-theta lens



Triplet F-Theta Lens for CO₂ Laser
Customized wavelength
