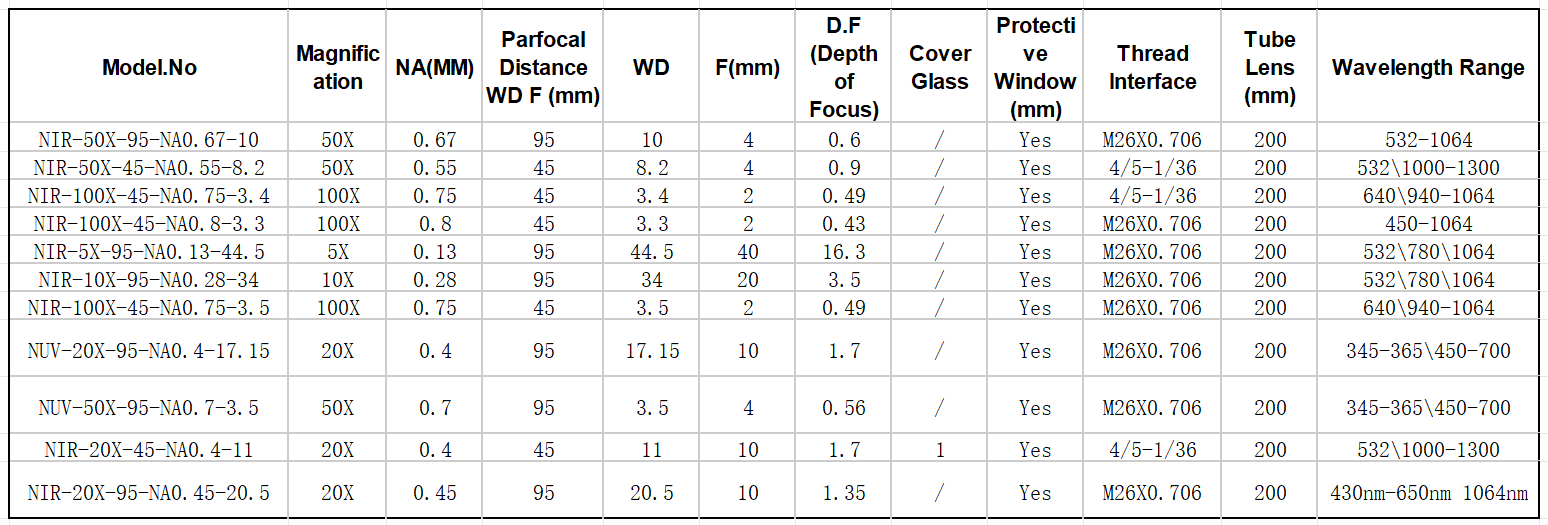

NIR-50X-95-NA0.67-10 – 50X/0.67 Infinity Corrected Microscope Objective, WD 10mm, 532–1064nm, M26 Thread, Protective Window

The NIR‑50X‑95‑NA0.67‑10 is a precision‑engineered, infinity‑corrected microscope objective designed for demanding near‑infrared (NIR) imaging and laser material processing applications. With a magnification of 50X and a numerical aperture (NA) of 0.67, it offers exceptional resolution (diffraction limit ~0.5 µm at 550 nm) while maintaining a practical working distance of 10 mm – a rare combination for high‑power NIR objectives.

Each unit (serial number reference: MO210620013) is individually tested for wavefront error, centration, and anti‑reflection coating performance. The broadband AR coating ensures >95% transmission across the full 532–1064 nm range. The rugged mechanical construction withstands continuous industrial use.
