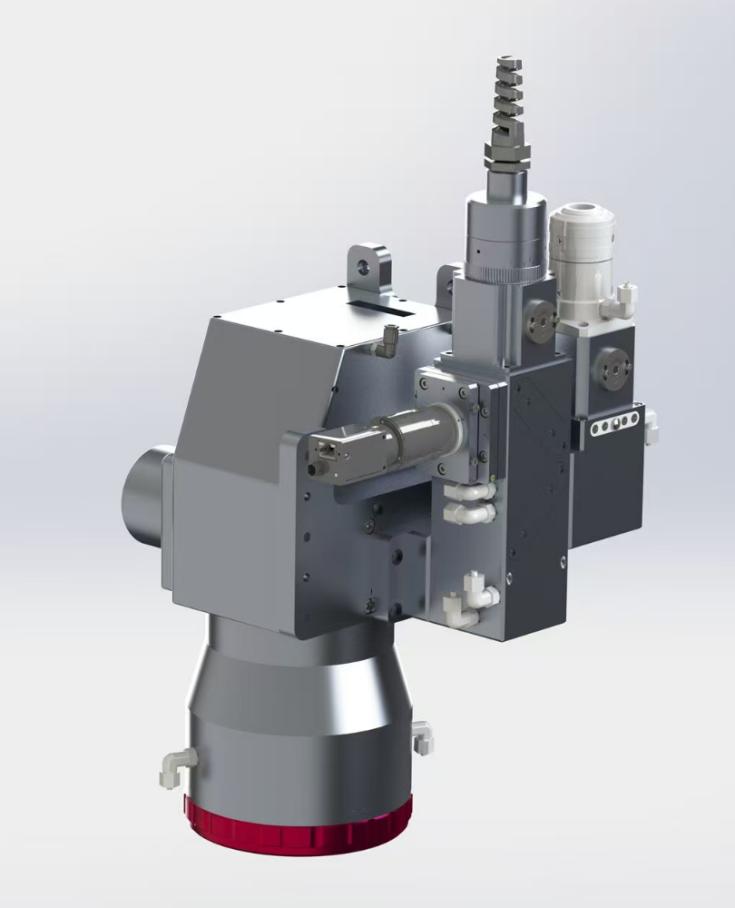

The Temperature-Controlled Galvanometer Scanning Welding Head is a specialized optical processing accessory designed for precision laser welding of thermally sensitive components. Engineered for high-precision, temperature-controlled laser welding applications, it effectively addresses the challenge of temperature management in micro-solder joints on thermal-sensitive parts. It serves as an optimal welding configuration for industries such as electronics, new energy, and precision medical device manufacturing.
Product Advantages
Precise Temperature Control: Closed-loop temperature control within a 1 mm micro-zone (accuracy of ±2 to ±3°C), with real-time infrared temperature monitoring, preventing overheating of thermal-sensitive components and ensuring weld stability.
High-Precision Positioning: Absolute positioning accuracy of <0.02 mm after calibration, with coaxial visual alignment calibration to minimize workpiece-induced errors.
Product Applications
The Temperature-Controlled Galvanometer Scanning Welding Head is ideally suited for a wide range of thermal-sensitive components and micro-scale solder joints, meeting the stringent requirements of precision temperature-controlled welding in various industries, including electronics manufacturing, new energy batteries, and medical devices.

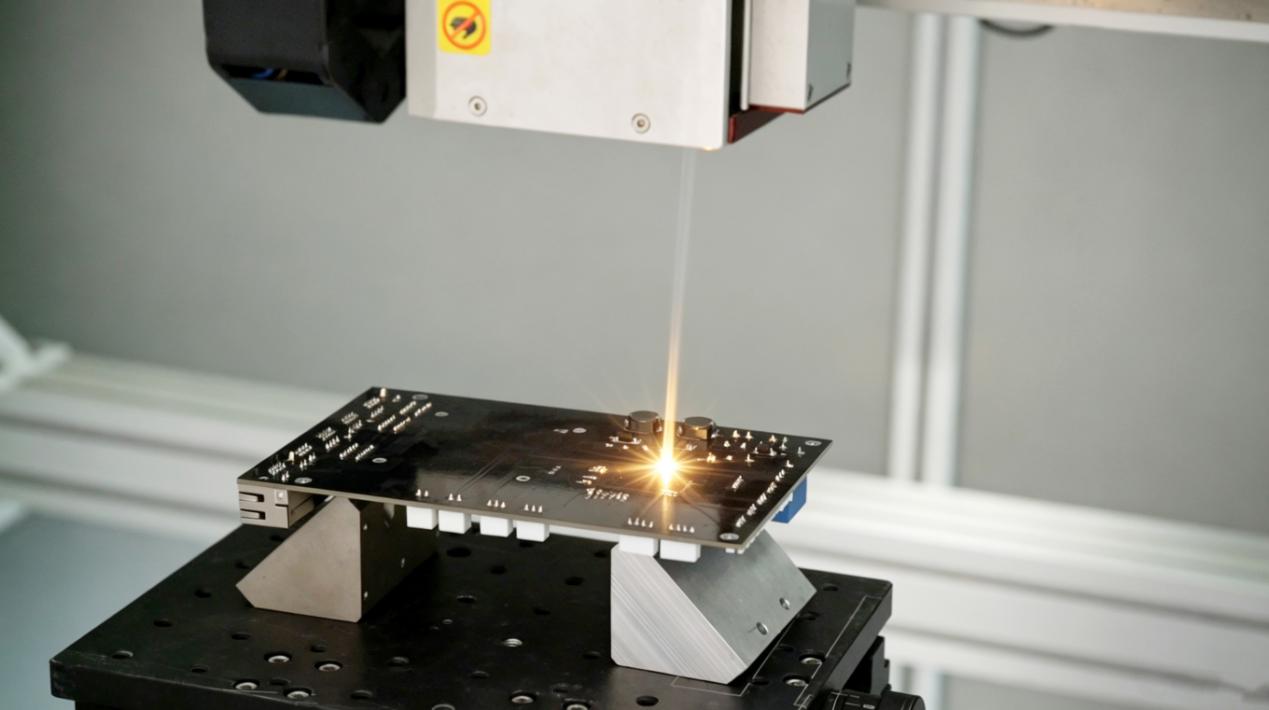

1.Electronics Manufacturing: Precision welding of micro-solder joints on PCBs, micro-component leads, and chip packages.
2.New Energy Batteries: Welding of thermal-sensitive components such as lithium battery tabs, electrode foils, and battery FPC flexible connections.
3.Medical Devices: Temperature-controlled welding of fine seams on precision metal implants and miniature medical accessories.
Technical Parameters：
|
Applicable Power |
< 500W |
|
Working Wavelength |
450nm / 915nm |
|
Fiber Connector |
SMA905 |
|
F-theta Lens Focal Length |
200mm |
|
Clear Aperture |
30mm |
With years of deep expertise in precision optics, Wavelength Optoelectronics possesses full-chain in-house R&D capabilities encompassing optical design, mechanical engineering, and complete system integration testing. Every product undergoes rigorous factory testing for temperature control and positioning accuracy. We offer services including sample processing upon request, technical selection consultation, and custom modifications, along with comprehensive process solutions for welding applications.
