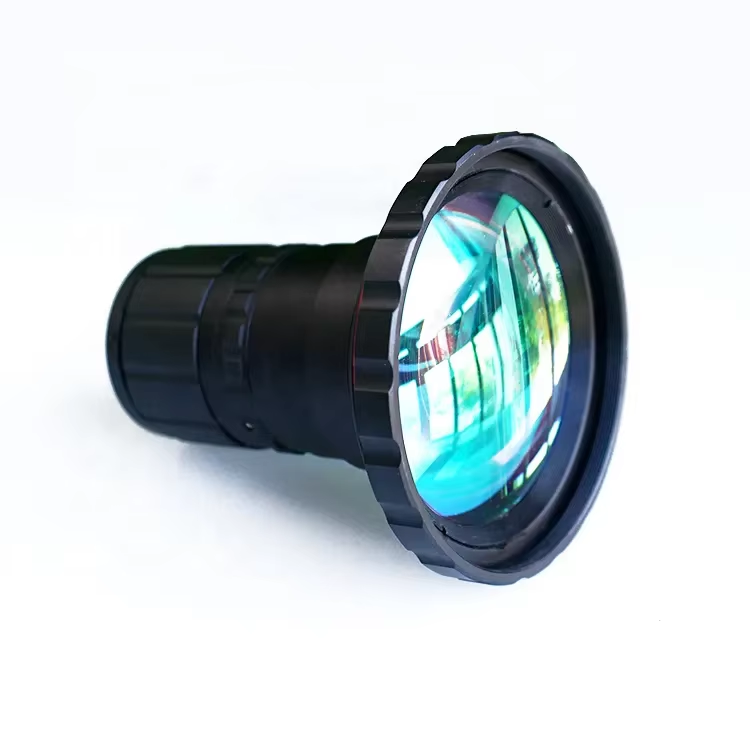

Hot sales NIR 900-1700NM 12.5MM FOCAL LENGTH INFRARED LENS FOR INFRARED CAMERA
Hot sales NIR 900-1700NM 12.5MM FOCAL LENGTH INFRARED LENS FOR INFRARED CAMERA
Near Infrared Lenses are infrared lenses optimized for the near infrared region, from 900 nm to 1700 nm. These aspheric lens achieve high precision performance across the NIR spectrum.
This near-infrared (NIR) lens is optimized for the 900–1700nm spectral range, designed for high-sensitivity imaging with CCD detectors. With a 12.5mm focal length, fast F1.4–F1.6 aperture, and 37° circular field of view, it delivers sharp, high-contrast images in near-infrared applications.
Specifications：
| Project | Specification |
|---|---|
| Focal Length | 12.5mm |
| F# | 1.4–1.6 |
| Spectral Range | 900–1700nm |
| Mount Type | C-Mount |
| Circular FOV | 37° |
| Back Working Distance | 43mm |
| Focus Type | Manual Focus |
| Detector Compatibility | CCD |
Key Features：
NIR-Optimized Design: Tuned for 900–1700nm wavelength range, ideal for night vision, industrial inspection, and NIR spectroscopy.
Fast Aperture: F1.4–F1.6 maximum aperture for excellent low-light performance and light gathering capability.
C-Mount Compatibility: Standard C-mount interface for seamless integration with industrial CCD cameras.
Wide Field of View: 37° circular FOV for broad-area imaging and monitoring.
Adjustable Focus: Manual focus control for precise focusing at different working distances.
Long Back Working Distance: 43mm BWD for flexible camera system integration.
NIR Lens
Near Infrared Lenses are infrared lenses optimized for the near infrared region, from 900 nm to 1700 nm. These aspheric lens achieve high precision performance across the NIR spectrum.
