China 10.6um Absorptive Low-Reflection Attenuator – Infrared ND Filter Manufacture and Factory

10.6um Absorptive Low-Reflection Attenuator – Infrared ND Filter

The NDF10.6um attenuator is an optical component designed for precise control of infrared light intensity. While regulating light intensity, it minimizes surface reflection to eliminate stray light and back-reflection interference. This is critical for applications demanding high signal-to-noise ratio (SNR) and effective laser system protection.

Working Wavelength: 10.6um (Customizable)

Working Angle: 0°

OD Value :Customizable

Reflectivity :<1%

Surface Figure:<1/4λ

Send email to us

Product Detail

Product Tags

Product Advantages

Low-Reflection Design: Surface reflectance below 1%, significantly reducing stray light and back reflections. Protects laser systems and improves signal quality.

High Damage Threshold: Suitable for high-power laser environments. Delivers stable and reliable performance.

Customizable OD Value: Supports a variety of optical density (OD) requirements, offering flexible adaptation to different light intensity attenuation needs.

Superior Surface Figure Accuracy: Surface figure error below 1/4λ, ensuring that beam quality remains uncompromised.

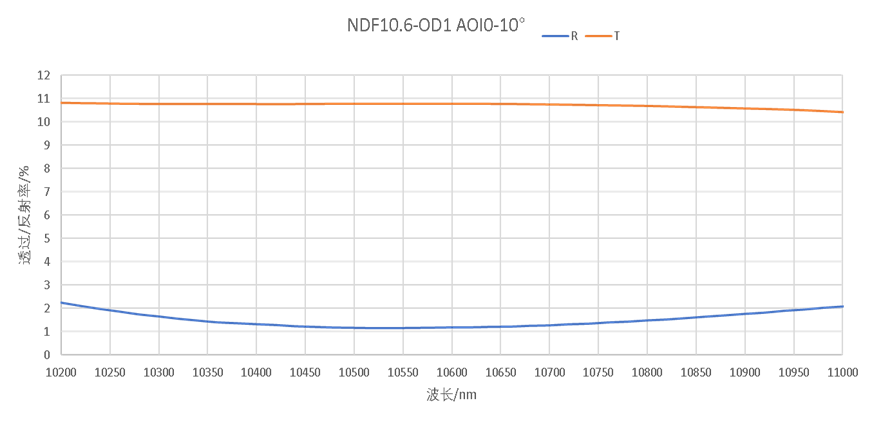

Coating curve

Application Fields

Suitable for high-precision optical measurement, industrial laser processing, infrared sensing, optical communication systems, and various laser applications that demand extremely high signal-to-noise ratio (SNR) and system protection.
