China High Precision Rectangular ZnSe Window – AR Coated 10.6μm, λ/4 Surface Flatness for CO2 Laser Systems Manufacture and Factory

High Precision Rectangular ZnSe Window – AR Coated 10.6μm, λ/4 Surface Flatness for CO2 Laser Systems

This series of rectangular ZnSe windows is precision-manufactured from high-quality zinc selenide (ZnSe), designed specifically for CO2 laser systems operating at 10.6μm. These infrared windows feature a dual-layer anti-reflection coating with less than 0.2% reflectance per surface at 10.6μm, ensuring maximum transmission and minimal power loss.

Key Specifications:

Surface quality: 60-40 scratch/dig
Surface flatness: λ/4 per 1” diameter @632.8nm
Parallelism: ≤3 arc minutes
Clear aperture: >90%
Dimension tolerance: +0/-0.13mm
Thickness tolerance: ±0.25mm

Send email to us

Product Detail

Product Tags

Scanning mirror

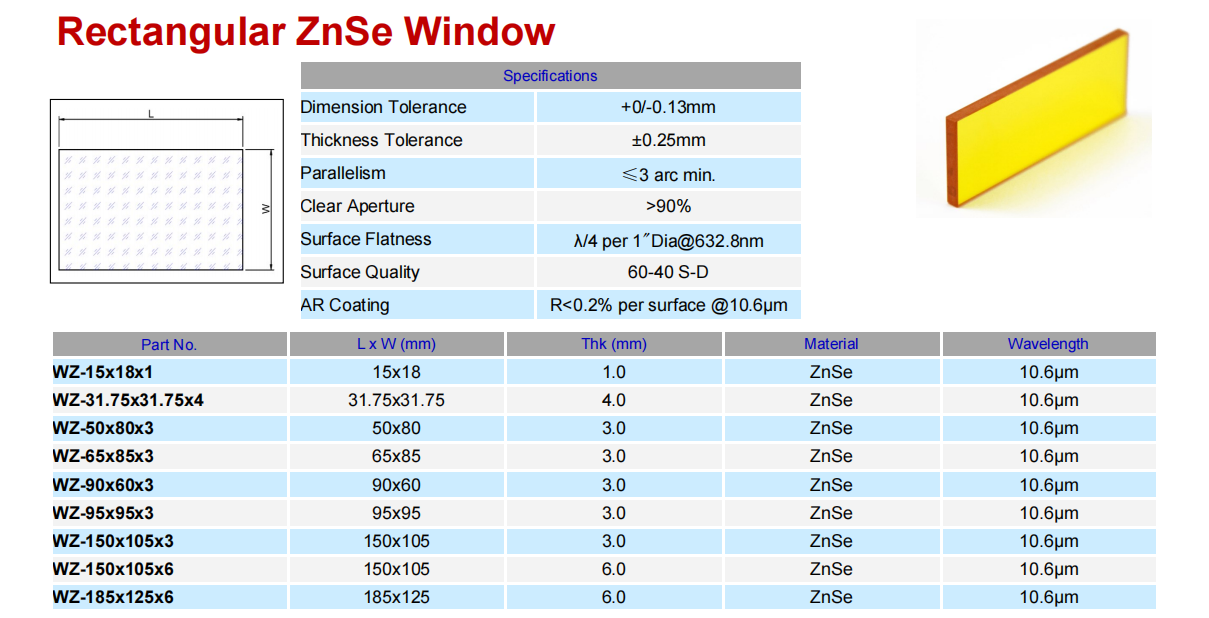

Available in multiple standard rectangular sizes ranging from 15x18mm to 185x125mm, with thickness options of 1.0mm, 3.0mm, 4.0mm, and 6.0mm (see part numbers WZ-15x18x1 through WZ-185x125x6). Custom dimensions are also available upon request.

These zinc selenide laser windows are ideal for CO2 laser beam delivery systems, thermal imaging, infrared spectroscopy, and high-power laser protection enclosures. The combination of low absorption coefficient, high thermal stability, and durable AR coating makes them a reliable choice for industrial and medical laser applications.

Whether you need a standard 10.6μm AR coated window or a fully customized shape, we deliver consistent quality with fast lead times. Optimize your CO2 laser system with our precision ZnSe optics.
